Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 01:06 PM

  • B 0384_B 0383_282016_051222.mp4

Date
02/08/2016
W/O
0547078
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00091
PipeID
P08896
Time
5:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0045
Sewer Name
B JOINT OUTFALL B - UNIT 5A
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
07
Purpose
Routine Assessment
Project
201608MDM_JOINT_OUTFALL_B_UNIT_5A
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
B 0384
Downstream MH
B 0383
Dir. of Survey
Downstream
Length Surveyed
165.9 ft.
Total Length
165.9 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole B 0384 to B 0383
MH: B 0384MH: B 0383downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 9:000 ft. MGO - General Observation - MH CONN STUB 3:002 ft. MGO - General Observation - MAG COAT 70% 9:00 TO 3:00 START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING32.4 ft. SAV - Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC148.7 ft. SAV - Surface Aggregate Visible, from 11 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG162.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC165.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - LAITANCE COAT PEELING BLISTERING165.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active165.5 ft. MGO - General Observation - MAG COAT 70% FINISH165.9 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (5)

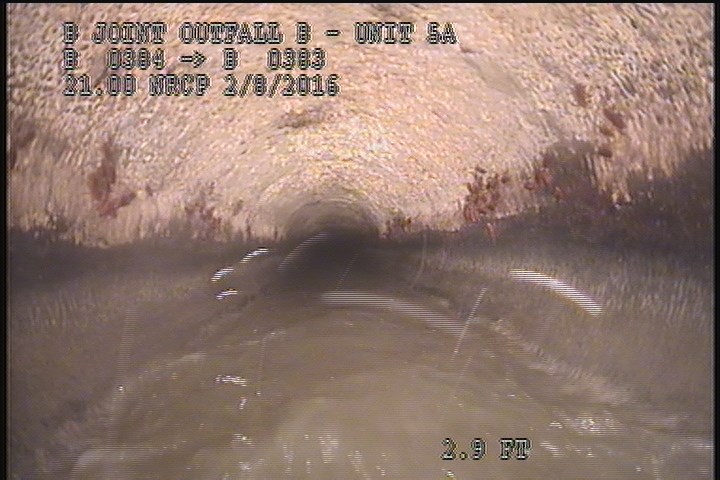

  • General Observation - MAG COAT 70% 9:00 TO 3:00 START

    2 ft. - General Observation - MAG COAT 70% 9:00 TO 3:00 START

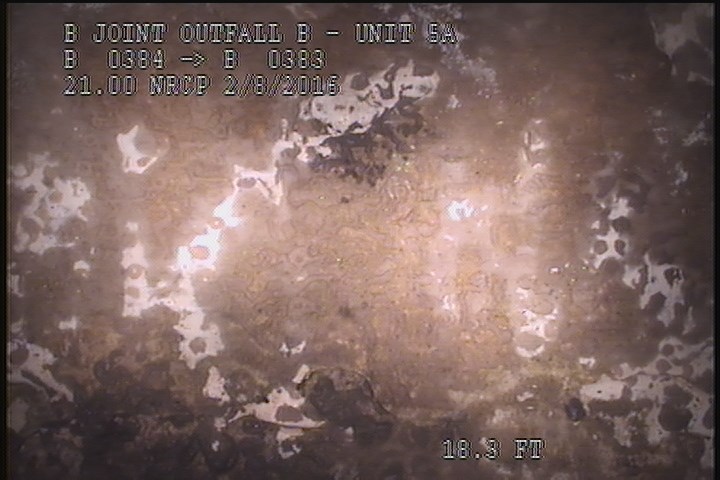

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT PEELING BLISTERING

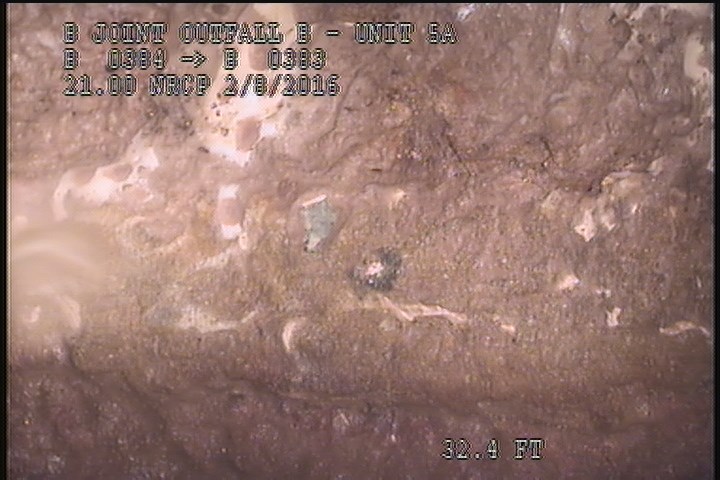

  • Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    32.4 ft. - Surface Aggregate Visible, from 09 to 10 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

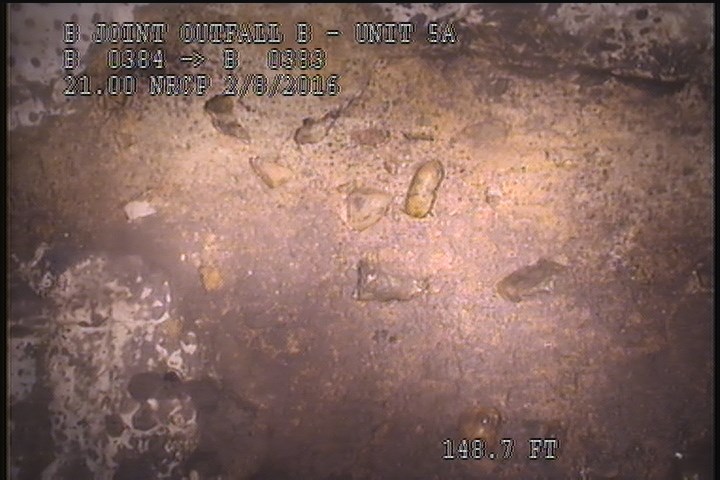

  • Surface Aggregate Visible, from 11 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    148.7 ft. - Surface Aggregate Visible, from 11 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

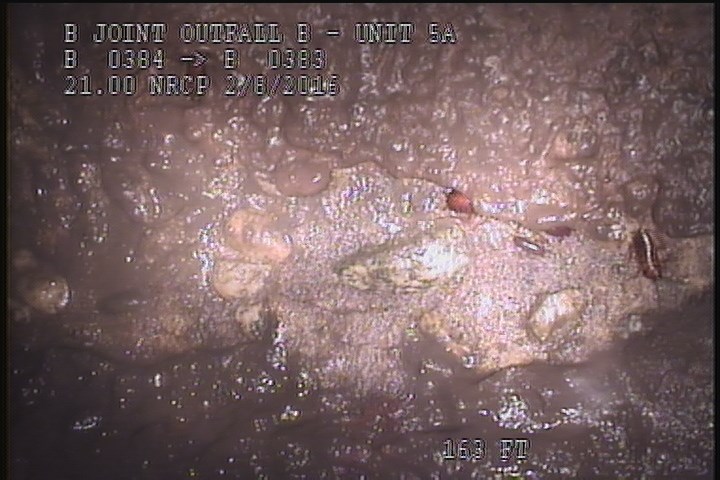

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    162.8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

All inspections of P08896Work order 0547078

Observations (14)

DistanceCodeObservation
2MGOMAG COAT 70% 9:00 TO 3:00 START
148.7SAVSEVERE AGG
0AMH5:10AM
0MWM—
162.8SAVSEVERE AGG SPORATIC
0MWL—
165.5SSSLAITANCE COAT PEELING BLISTERING
2SSSLAITANCE COAT PEELING BLISTERING
0MGOMH CONN OPEN 9:00
0MGOMH CONN STUB 3:00
165.9AMH5:30AM
165.5MGOConn. @ Mh, 3 O' Clock. Active
165.5MGOMAG COAT 70% FINISH
32.4SAVSEVERE AGG SPORATIC

Properties (4)

custom_field_three
SEVERE AGG SPORATIC
custom_field_two
3
customer
LACSD
datetime
