Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 10:54 AM

  • B 0387_B 0386_282016_030008.mp4

  • B 0388_B 0387_282016_030149.mp4

Date
02/08/2016
W/O
0547078
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00091
PipeID
P08900
Time
2:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0045
Sewer Name
B JOINT OUTFALL B - UNIT 5A
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
07
Purpose
Routine Assessment
Project
201608MDM_JOINT_OUTFALL_B_UNIT_5A
Material
NRCP
Shape
Circular
Height
21 in.
Upstream MH
B 0388
Downstream MH
B 0387
Dir. of Survey
Downstream
Length Surveyed
242.8 ft.
Total Length
242.8 ft.
Structural Index
2
Structural Quick
3124
Structural Rating
11
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole B 0388 to B 0387
MH: B 0388MH: B 0387downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. RFJ - Roots Fine Joint, from 01 to 02 o'clock, within 8 inches of joint: YESR2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN BLISTERING LAITANCE COAT2 ft. MGO - General Observation - MAG COAT 60% 8:00 TO 4:00 START39.1 ft. MGO - General Observation - MAG COAT 80% START54.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING LAITANCE COAT NDER MAG COAT143.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC165.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT242.2 ft. MGO - General Observation - MAG COAT 60% FINISH242.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - LAITANCE COAT SWOLLEN BLISTERING242.2 ft. MGO - General Observation - MH CONN OPEN 9:00242.8 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (5)

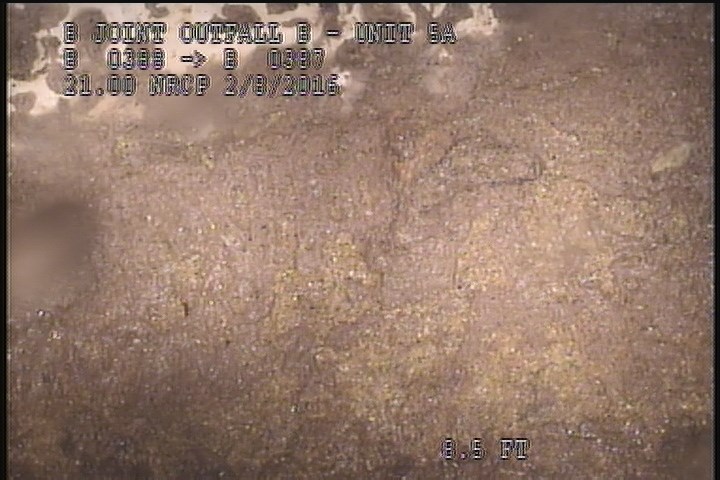

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN BLISTERING LAITANCE COAT

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SWOLLEN BLISTERING LAITANCE COAT

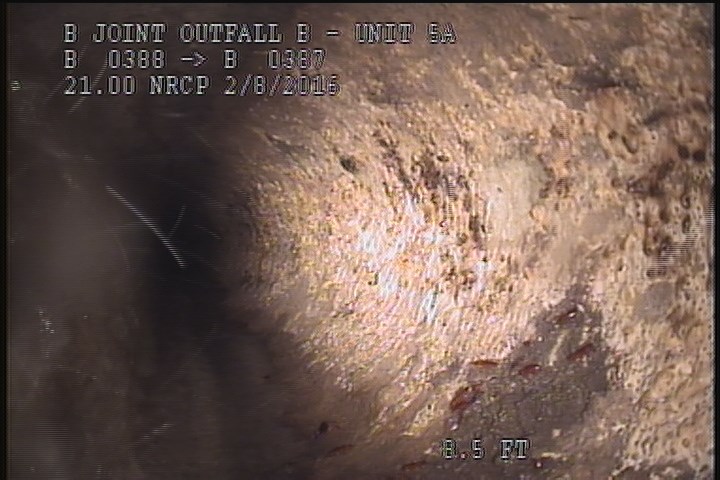

  • General Observation - MAG COAT 60% 8:00 TO 4:00 START

    2 ft. - General Observation - MAG COAT 60% 8:00 TO 4:00 START

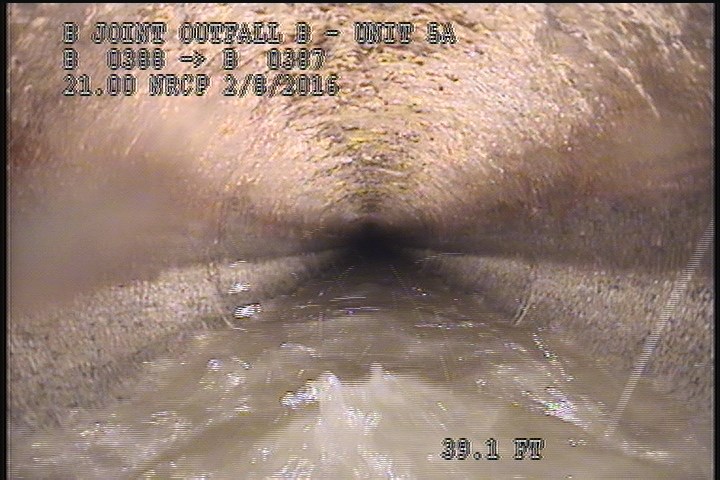

  • General Observation - MAG COAT 80% START

    39.1 ft. - General Observation - MAG COAT 80% START

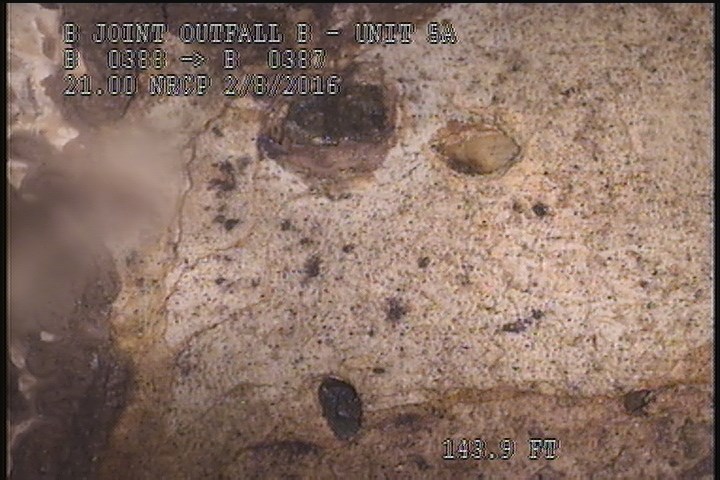

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

    143.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG SPORATIC

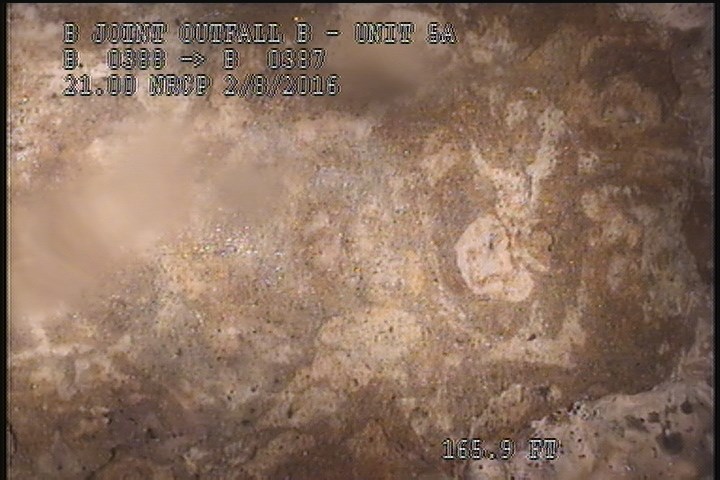

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

    165.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

All inspections of P08900Work order 0547078

Observations (15)

DistanceCodeObservation
242.2MGOMAG COAT 60% FINISH
0MWM—
54.5SSSBLISTERING LAITANCE COAT NDER MAG COAT
2SSSSWOLLEN BLISTERING LAITANCE COAT
0MGOConn. @ Mh, 3 O' Clock. Active
39.1MGOMAG COAT 80% START
143.9SAVSEVERE AGG SPORATIC
2MGOMAG COAT 60% 8:00 TO 4:00 START
242.2SSSLAITANCE COAT SWOLLEN BLISTERING
0AMH2:55AM
242.2MGOMH CONN OPEN 9:00
0MWL—
165.9SSSBLISTERING LAITANCE COAT
0RFJ—
242.8AMH3:20AM

Properties (4)

custom_field_three
VERY SPORATIC SEVERE AGG
custom_field_two
3
customer
LACSD
datetime
2016-02-08T02:54:59-08:00
