Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 26, 2016, 04:39 PM

  • A 0059A_A 1066_2262016_084511.mp4

Date
02/26/2016
W/O
0552337
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00337
PipeID
P20107
Time
8:39 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0071
Sewer Name
A JOINT OUTFALL A - UNIT 6
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20160226AM_JOINT_OUTFALL_A_UNIT_6
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0059A
Downstream MH
A 1066
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0059A to A 1066
MH: A 0059AMH: A 1066downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:42 AM0 ft. MWL - Water Level, 35 %of cross sectional area2 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO2 ft. MGO - General Observation - CORROSION BEYOND REBAR2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO2.1 ft. AMH - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN D/S TO MH. A 1066

Observation photos (6)

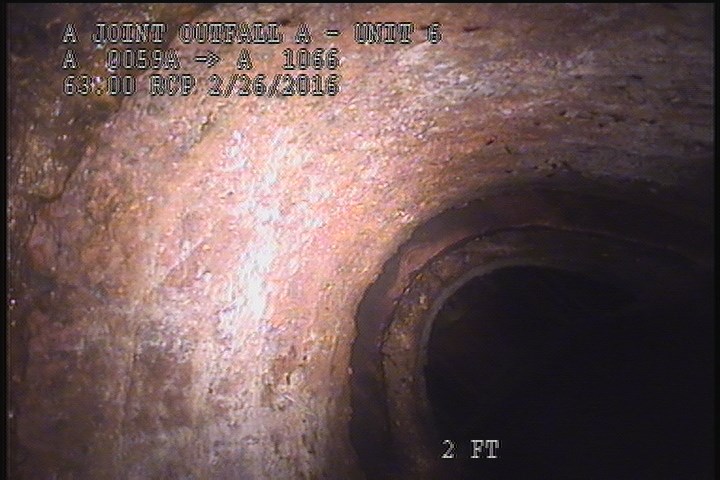

  • Upstream Manhole, Survey Begins - 8:42 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:42 AM

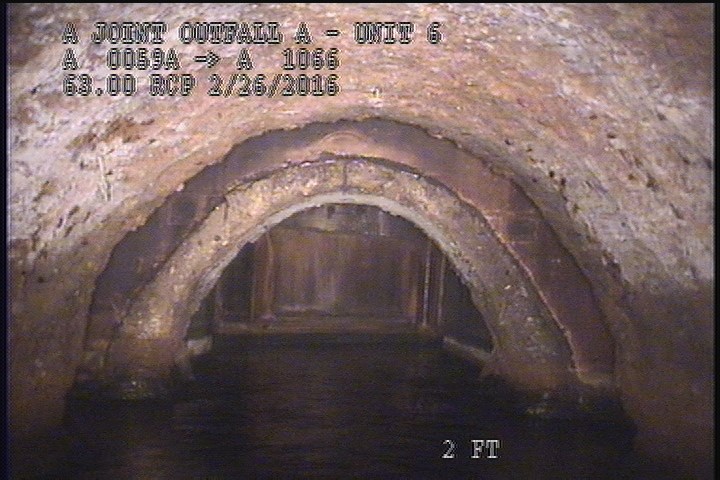

  • Water Level, 35 %of cross sectional area

    0 ft. - Water Level, 35 %of cross sectional area

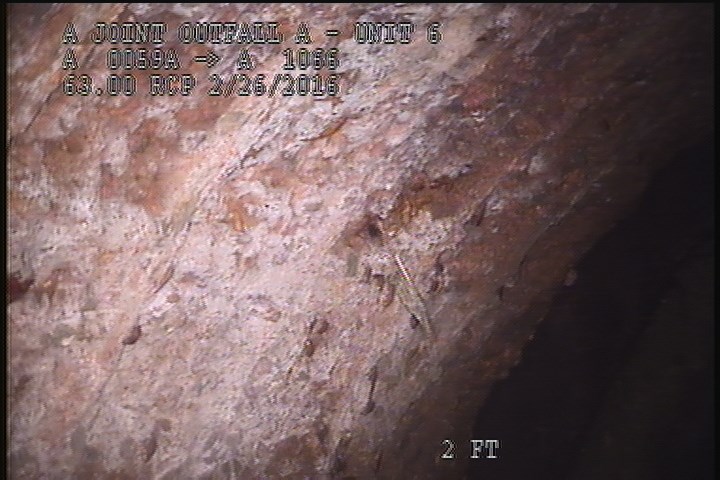

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO

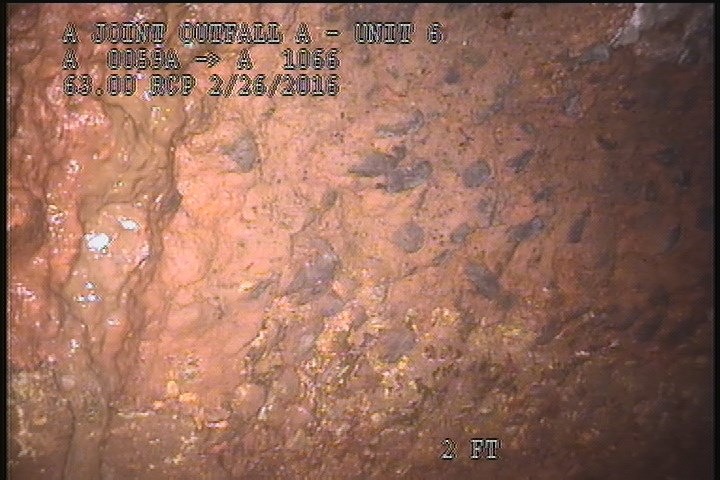

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

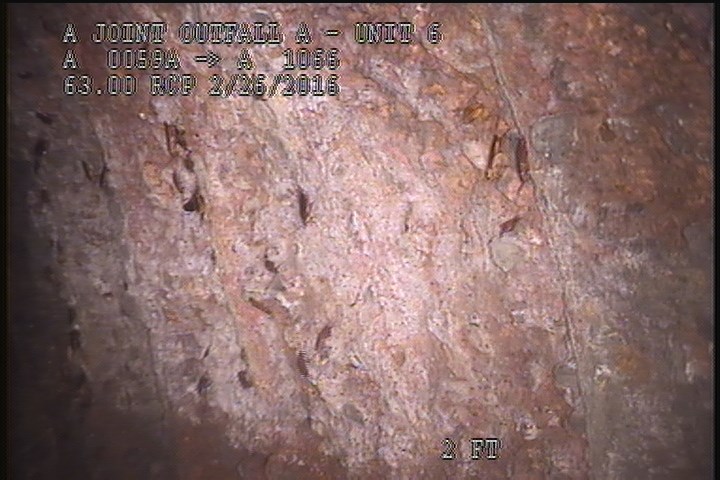

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO

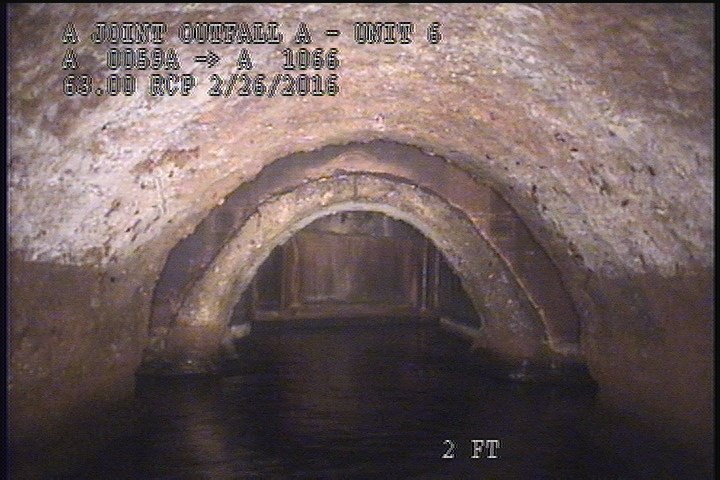

  • Upstream Manhole, Survey Ends - ABLE TO ZOOM IN D/S TO MH. A 1066

    2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN D/S TO MH. A 1066

All inspections of P20107Work order 0552337

Observations (7)

DistanceCodeObservation
2SRV—
2.1AMHABLE TO ZOOM IN D/S TO MH. A 1066
0AMH8:42 AM
2SAV—
0MWL—
2MGOCORROSION BEYOND REBAR
2SSS—

Properties (5)

additional_info
RFIR INSPECTION, JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. AND ZOOM IN D/S
custom_field_three
REBAR, CORROSION BEYOND REBAR, SEV. EXP. AGG
custom_field_two
1
customer
LACSD
datetime
2016-02-26T08:39:52-08:00
