Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 04:41 PM

  • 01 0114_01 0113_2252016_090251.mp4

Date
02/25/2016
W/O
0559539
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00203
PipeID
P01180
Time
8:41 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7063
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 1
City
LOS ANGELES
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
15
Purpose
Maintenance Related
Project
20160225AM_COMPTON_CREEK_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
01 0114
Downstream MH
01 0113
Dir. of Survey
Downstream
Length Surveyed
297.3 ft.
Total Length
297.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 01 0114 to 01 0113
MH: 01 0114MH: 01 0113downstream0 ft. MGO - General Observation - GREASE INSPECTION ONLY0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:02 AM2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start295.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Finish295.2 ft. MGO - General Observation - SLIGHT DEBRIS/GREASE THROUGHOUT THE REACH AT THE BOTTOM OF THE PIPE297.1 ft. MGO - General Observation - GREASE/DIRT ALL OVER THE SHELVES INSIDE THE MH.297.3 ft. AMH - Downstream Manhole, Survey Ends - 9:15 AM

Observation photos (3)

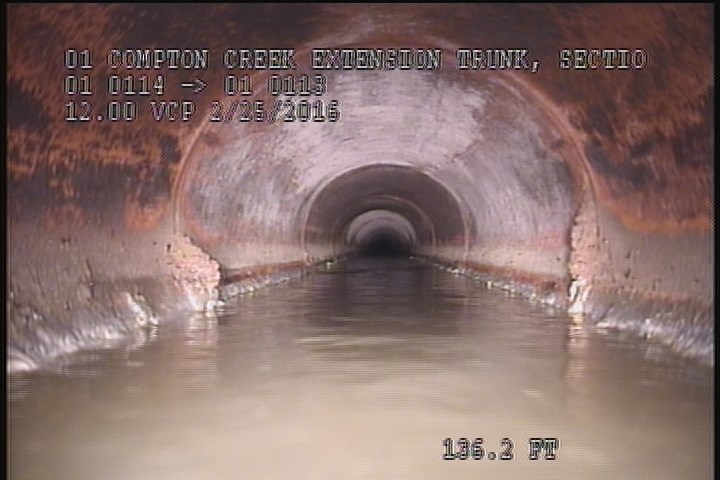

  • Water Level, 25 %of cross sectional area

    0 ft. - Water Level, 25 %of cross sectional area

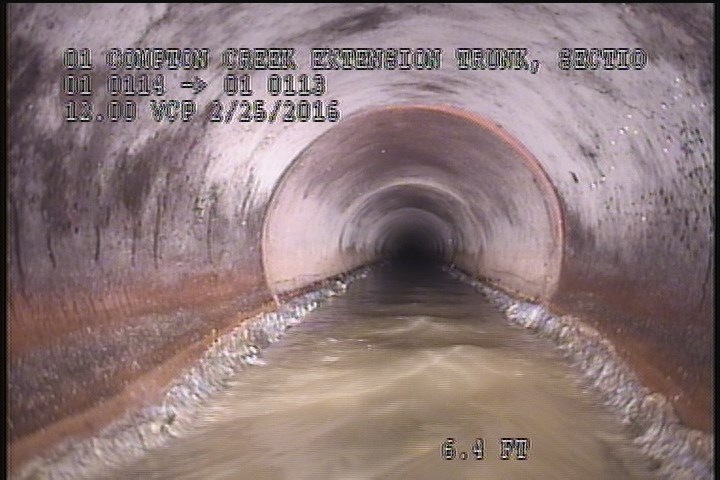

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

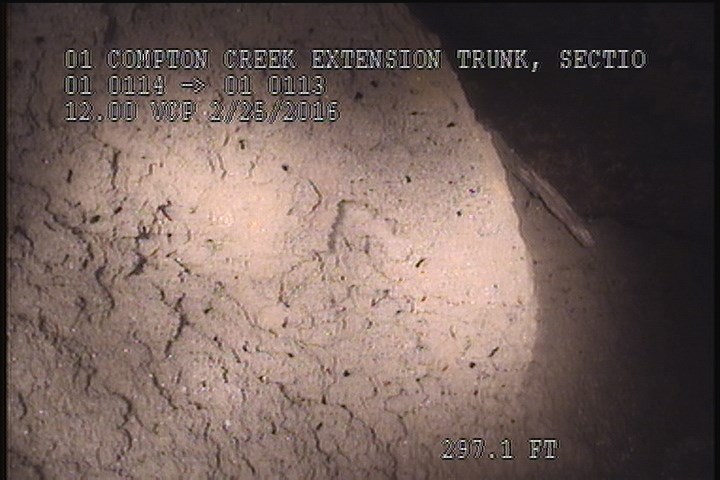

  • General Observation - GREASE/DIRT ALL OVER THE SHELVES INSIDE THE MH.

    297.1 ft. - General Observation - GREASE/DIRT ALL OVER THE SHELVES INSIDE THE MH.

All inspections of P01180Work order 0559539

Observations (8)

DistanceCodeObservation
295.2DAGS—
2DAGS—
297.1MGOGREASE/DIRT ALL OVER THE SHELVES INSIDE THE MH.
0MGOGREASE INSPECTION ONLY
0MWL—
295.2MGOSLIGHT DEBRIS/GREASE THROUGHOUT THE REACH AT THE BOTTOM OF THE PIPE
0AMH9:02 AM
297.3AMH9:15 AM

Properties (5)

additional_info
GREASE INSPECTION ONLY
custom_field_three
GREASE INSPECTION ONLY
custom_field_two
5
customer
LACSD
datetime
2016-02-25T08:41:04-08:00
