Wastewater/Activity/PacpInspection/1.0Feb 24, 2016, 09:53 PM
21 1284_21 0857_2242016_135733.mp4
- Date
- 02/24/2016
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00764
- PipeID
- P24718
- Time
- 1:53 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7062
- Sewer Name
- 21 EMERALD AVENUE TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 02
- Purpose
- Maintenance Related
- Project
- 20160223AM_EMERALD_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0857
- Downstream MH
- 21 1284
- Dir. of Survey
- Upstream
- Length Surveyed
- 101.4 ft.
- Total Length
- 101.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

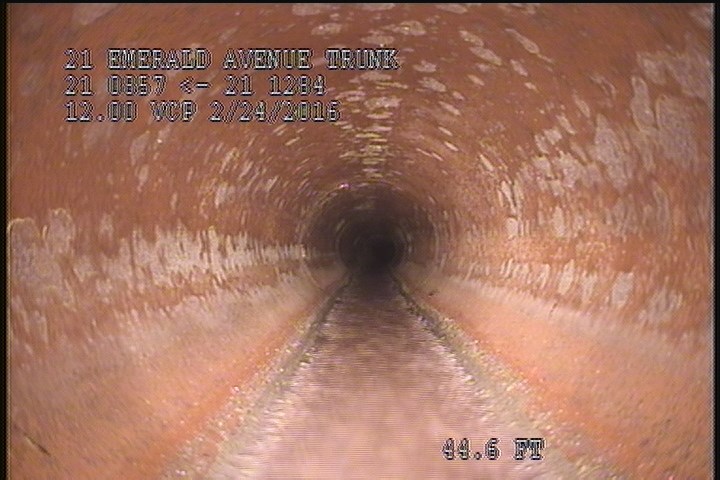

0 ft. - Downstream Manhole, Survey Begins - 1:56 PM, SINKHOLE

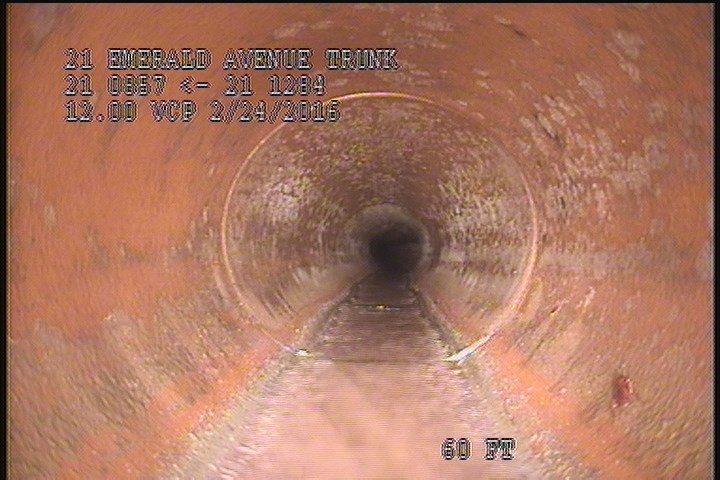

0 ft. - Water Level, 5 %of cross sectional area
Observations (3)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:56 PM, SINKHOLE |
| 0 | MWL | — |
| 101.4 | MSA | JUST NEEDED TO CCTV 60' U/S |
Properties (5)
- additional_info
- EMERGENCY INSPECTION, GOING TO CCTV 45'-59' U/S TO CHECK OUT THE SINKHOLE STATUS
- custom_field_three
- SINKHOLE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-02-24T13:53:07-08:00
