Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2016, 12:30 PM

  • D 0214_D 0213_2222016_043846.mp4

Date
02/22/2016
W/O
0547097
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01112
PipeID
P22739
Time
4:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0062
Sewer Name
D JOINT OUTFALL D - UNIT 9 REPLACEMENT
City
MANHATTAN BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20160222MDM_JOINT_OUTFALL_D_UNIT_9_REPLACEMENT
Material
Vitrified Clay Pipe
Shape
Circular
Height
42 in.
Upstream MH
D 0214
Downstream MH
D 0213
Dir. of Survey
Downstream
Length Surveyed
506.4 ft.
Total Length
506.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole D 0214 to D 0213
MH: D 0214MH: D 0213downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM278.3 ft. MGP - General Photograph - 42" VCP278.3 ft. MGO - General Observation - LOOSE JOINT SEALER488.1 ft. MGO - General Observation - LOOSE JOINT SEALER506.4 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (3)

  • General Photograph - 42" VCP

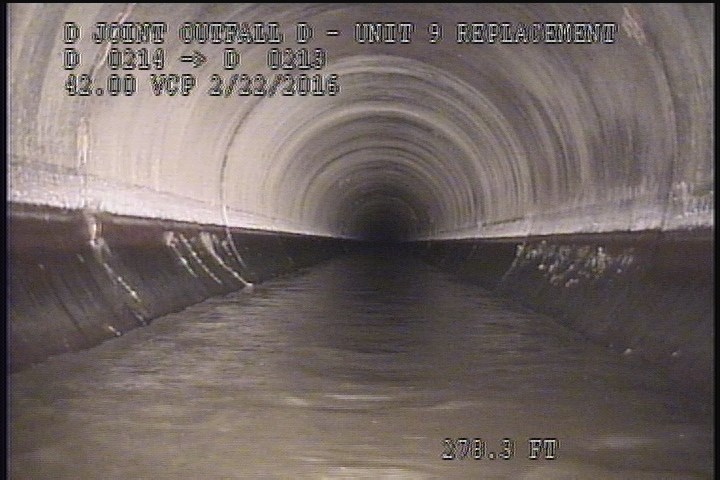

    278.3 ft. - General Photograph - 42" VCP

  • General Observation - LOOSE JOINT SEALER

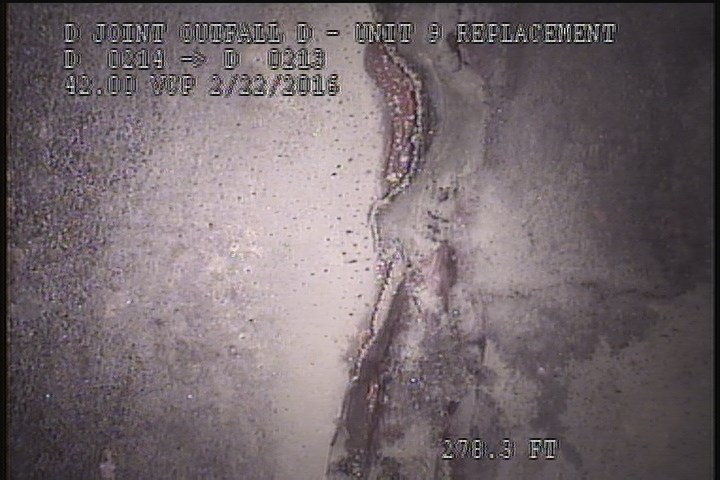

    278.3 ft. - General Observation - LOOSE JOINT SEALER

  • General Observation - LOOSE JOINT SEALER

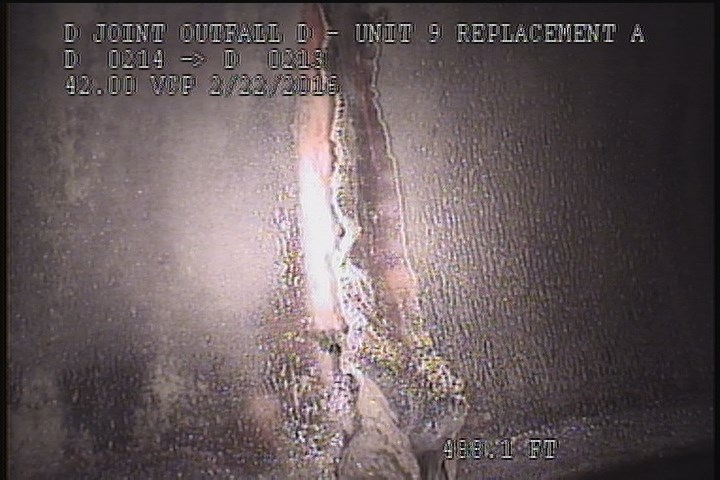

    488.1 ft. - General Observation - LOOSE JOINT SEALER

All inspections of P22739Work order 0547097

Observations (7)

DistanceCodeObservation
0MWM—
0MWL—
506.4AMH5:10AM
0AMH4:30AM
278.3MGP42" VCP
488.1MGOLOOSE JOINT SEALER
278.3MGOLOOSE JOINT SEALER

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-02-22T04:30:00-08:00
