Wastewater/Activity/PacpInspection/1.0Feb 22, 2016, 09:58 AM
D 0223_D 0215_2222016_020734.mp4
- Date
- 02/22/2016
- W/O
- 0547097
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01112
- PipeID
- P22748
- Time
- 1:58 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0062
- Sewer Name
- D JOINT OUTFALL D - UNIT 9 REPLACEMENT
- City
- MANHATTAN BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20160222MDM_JOINT_OUTFALL_D_UNIT_9_REPLACEMENT
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- D 0223
- Downstream MH
- D 0215
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.5 ft.
- Total Length
- 11.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

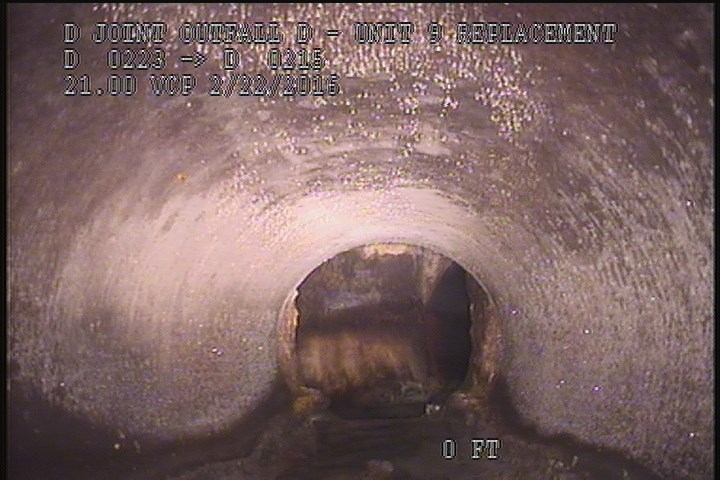

0 ft. - General Photograph - 21" VCP

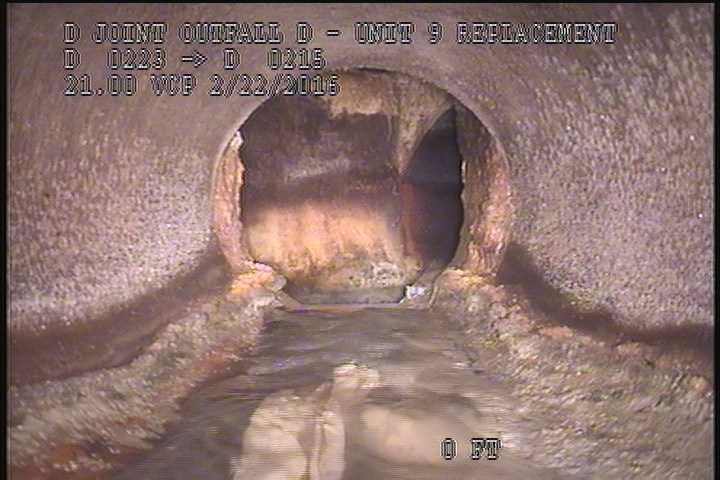

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 11.2 | DAGS | — |
| 2 | DAGS | — |
| 11.5 | AMH | 2:10AM |
| 0 | AMH | 2:00AM |
| 0 | MWL | — |
| 0 | MGP | 21" VCP |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-22T01:58:13-08:00
- year_laid
- 20000828
