Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 22, 2016, 04:37 PM

  • H 0638_H 0637_2222016_084527.mp4

Date
02/22/2016
W/O
0547071
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00192
PipeID
P20470
Time
8:37 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7056
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
20160222AM_JOINT_OUTFALL_H_UNIT_8J
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
H 0638
Downstream MH
H 0637
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 0638 to H 0637
MH: H 0638MH: H 0637downstream0 ft. MGO - General Observation - STOPLOG IN PLACE INSIDE THE MH. @ 05 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 8:42 AM0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 05 O'CLOCK2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH2 ft. LD - Alignment Down, 45 %2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO2.1 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (5)

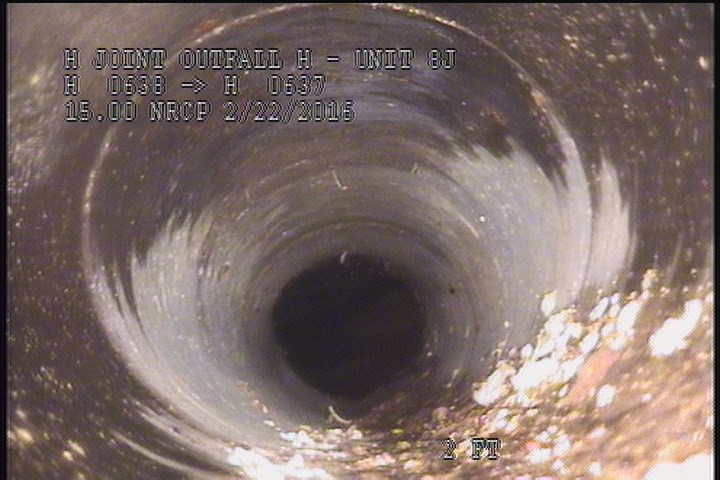

  • General Observation - STOPLOG IN PLACE INSIDE THE MH. @ 05 O'CLOCK

    0 ft. - General Observation - STOPLOG IN PLACE INSIDE THE MH. @ 05 O'CLOCK

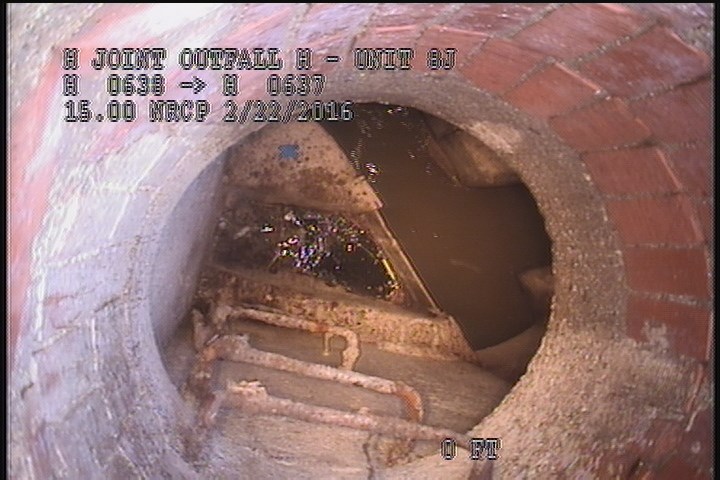

  • Upstream Manhole, Survey Begins - 8:42 AM

    0 ft. - Upstream Manhole, Survey Begins - 8:42 AM

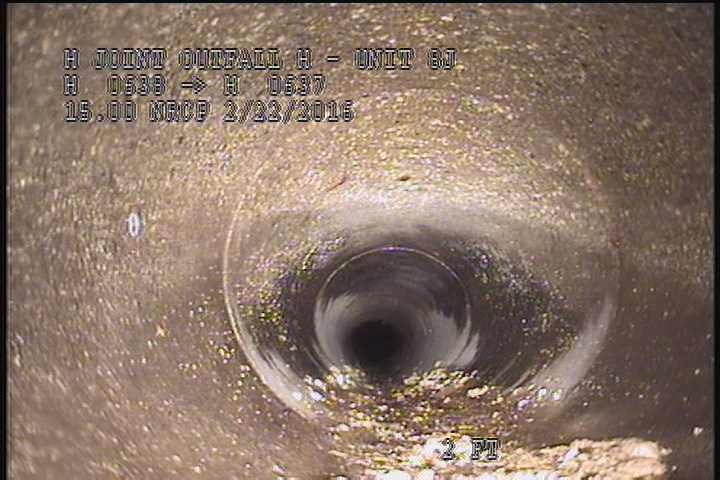

  • Water Level, 0 %of cross sectional area - DRY LINE

    0 ft. - Water Level, 0 %of cross sectional area - DRY LINE

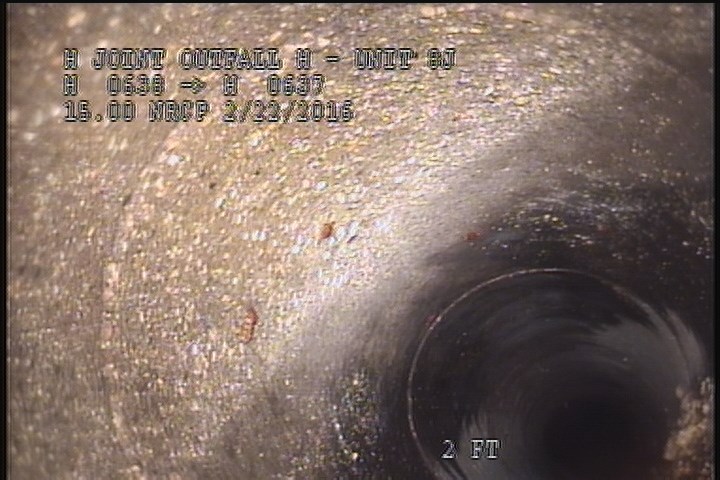

  • General Observation - ACTIVE CONN. INSIDE THE MH. @ 05 O'CLOCK

    0 ft. - General Observation - ACTIVE CONN. INSIDE THE MH. @ 05 O'CLOCK

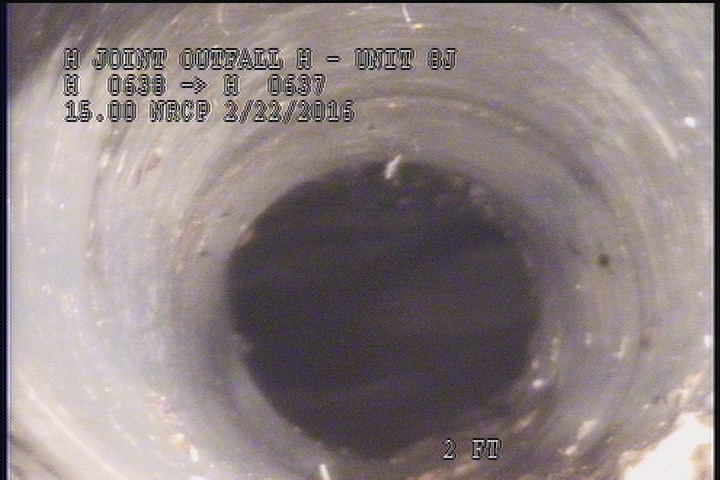

  • Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

    2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

All inspections of P20470Work order 0547071

Observations (8)

DistanceCodeObservation
0MGOSTOPLOG IN PLACE INSIDE THE MH. @ 05 O'CLOCK
0AMH8:42 AM
2MGOSLIGHT GREASE THROUGHOUT THE REACH
2.1MSAVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
2LD—
2SAV—
0MWLDRY LINE
0MGOACTIVE CONN. INSIDE THE MH. @ 05 O'CLOCK

Properties (5)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON, S/W BARREL
custom_field_three
SLIGHT EXP. AGGREGATE
custom_field_two
3
customer
LACSD
datetime
2016-02-22T08:37:40-08:00
