Wastewater/Activity/PacpInspection/1.0Feb 19, 2016, 10:29 AM

  • 05 1036_05 1035_2192016_023529.mp4

Date
02/19/2016
W/O
0547080
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00424
PipeID
P06270
Time
2:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0058
Sewer Name
05 AVIATION BOULEVARD RELIEF TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20160219MDM_AVIATION_BOULEVARD_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
05 1036
Downstream MH
05 1035
Dir. of Survey
Downstream
Length Surveyed
419.8 ft.
Total Length
419.8 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 1036 to 05 1035
MH: 05 1036MH: 05 1035downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLIETERING2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TO 4:00119.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN LAITANCE COAT223 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN PEELING LAITANCE COAT319.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - SWOLLEN LAITANCE COAT419.4 ft. MGO - General Observation - MAG COAT 70% FINISH419.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SWOLLEN BLISTERING LAITANCE COAT419.8 ft. AMH - Downstream Manhole, Survey Ends - 3:05AM

Observation photos (5)

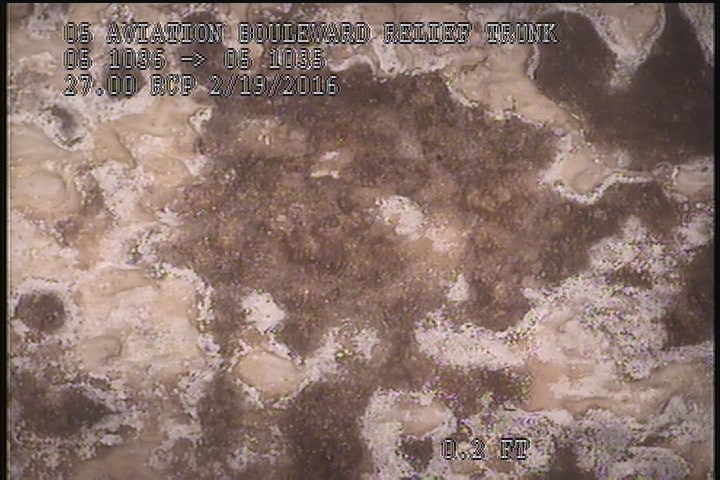

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLIETERING

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LAITANCE COAT SWOLLEN BLIETERING

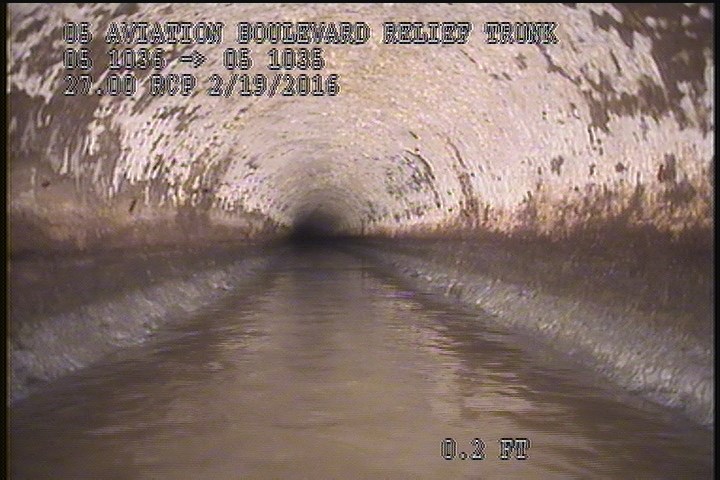

  • General Observation - MAG COAT 70% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

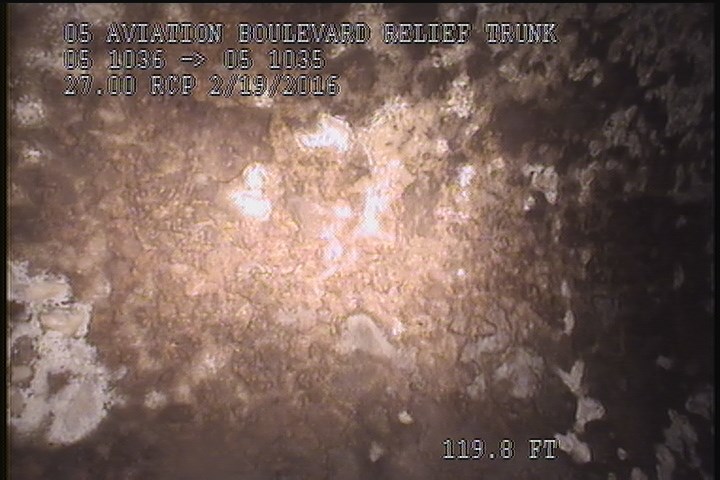

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN LAITANCE COAT

    119.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN LAITANCE COAT

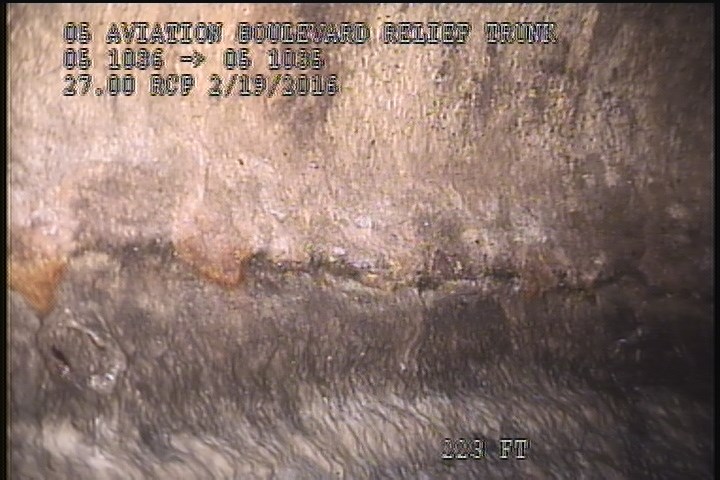

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN PEELING LAITANCE COAT

    223 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN PEELING LAITANCE COAT

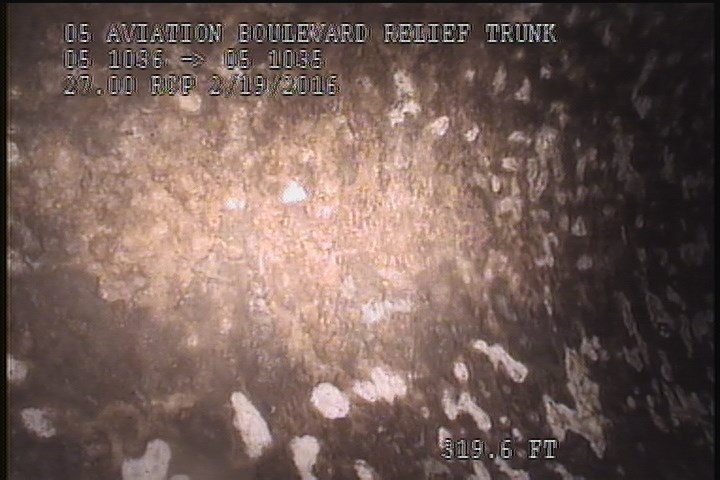

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - SWOLLEN LAITANCE COAT

    319.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - SWOLLEN LAITANCE COAT

All inspections of P06270Work order 0547080

Observations (11)

DistanceCodeObservation
0MWM—
223SSSSWOLLEN PEELING LAITANCE COAT
419.4MGOMAG COAT 70% FINISH
0AMH2:30AM
119.8SSSSWOLLEN LAITANCE COAT
319.6SSSSWOLLEN LAITANCE COAT
2SSSLAITANCE COAT SWOLLEN BLIETERING
2MGOMAG COAT 70% START 8:00 TO 4:00
419.4SSSSWOLLEN BLISTERING LAITANCE COAT
0MWL—
419.8AMH3:05AM

Properties (4)

custom_field_three
LAITANCE COAT SPALLING
custom_field_two
4
customer
LACSD
datetime
2016-02-19T02:29:45-08:00
