Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 08:51 PM
05 2495_05 2492_2252016_125501.mp4
- Date
- 02/25/2016
- W/O
- 0552371
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00902
- PipeID
- P20896
- Time
- 12:51 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7064
- Sewer Name
- 05 MONETA EXT. TRUNK, SECT. 1 RELIEF
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- 20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 05 2495
- Downstream MH
- 05 2492
- Dir. of Survey
- Downstream
- Length Surveyed
- 285.1 ft.
- Total Length
- 285.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

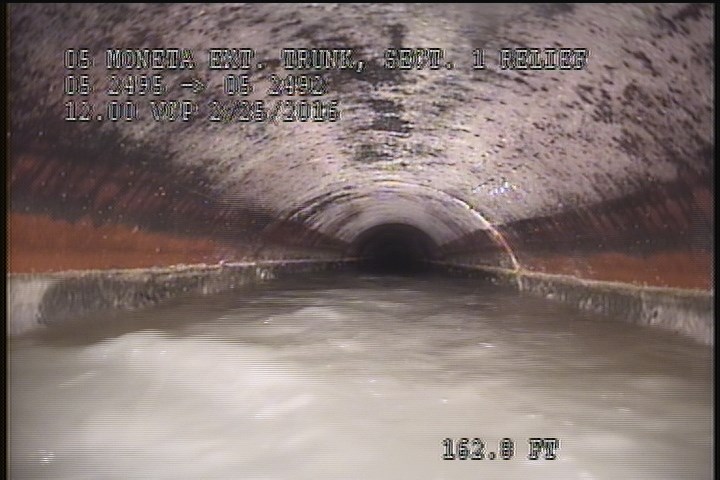

0 ft. - Upstream Manhole, Survey Begins - 12:54 PM

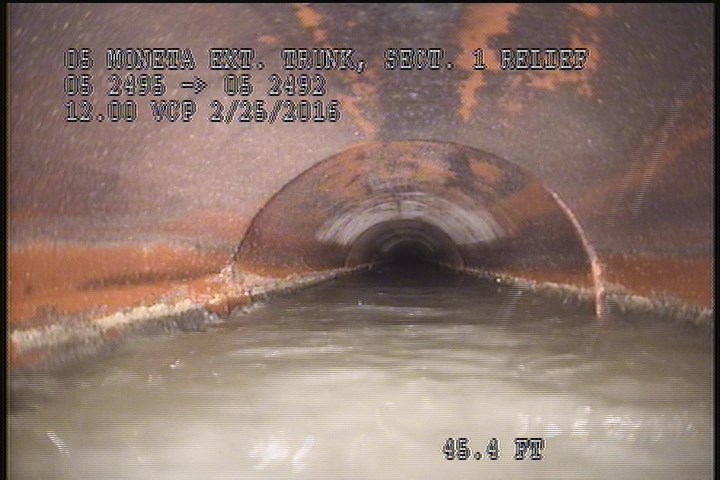

0 ft. - Water Level, 55 %of cross sectional area

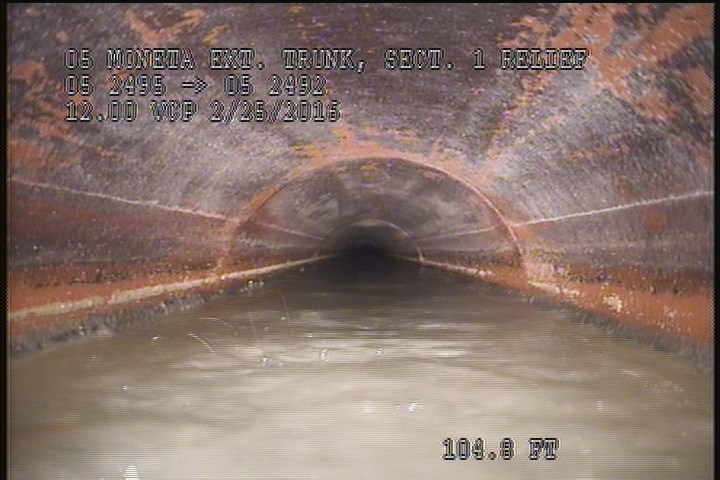

0 ft. - Water Mark, 70 %of cross sectional area

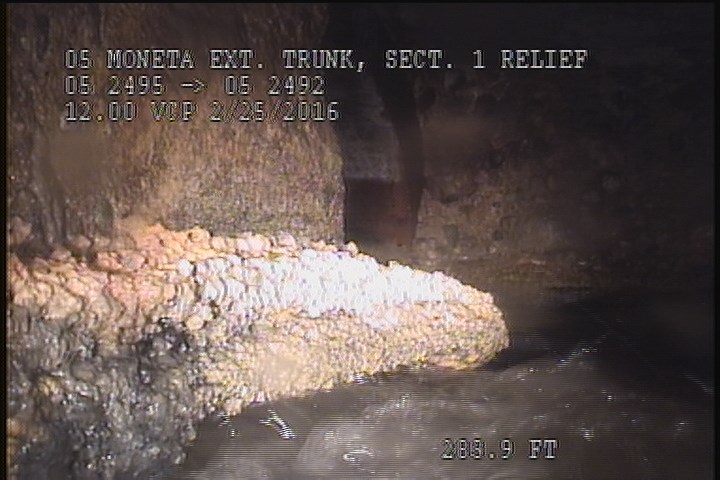

283.9 ft. - General Observation - GREASE INSIDE THE MH.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 283.9 | MGO | GREASE INSIDE THE MH. |
| 0 | AMH | 12:54 PM |
| 285.1 | AMH | 1:08 PM |
| 283.9 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-25T12:51:10-08:00
