Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 25, 2016, 08:38 PM

  • 05 2496_05 2495_2252016_124016.mp4

Date
02/25/2016
W/O
0552371
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00902
PipeID
P20897
Time
12:38 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7064
Sewer Name
05 MONETA EXT. TRUNK, SECT. 1 RELIEF
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 2496
Downstream MH
05 2495
Dir. of Survey
Downstream
Length Surveyed
207.9 ft.
Total Length
207.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 2496 to 05 2495
MH: 05 2496MH: 05 2495downstream0 ft. MWL - Water Level, 55 %of cross sectional area0 ft. MWM - Water Mark, 75 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:39 PM206.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH207.9 ft. AMH - Downstream Manhole, Survey Ends - 12:50 PM

Observation photos (2)

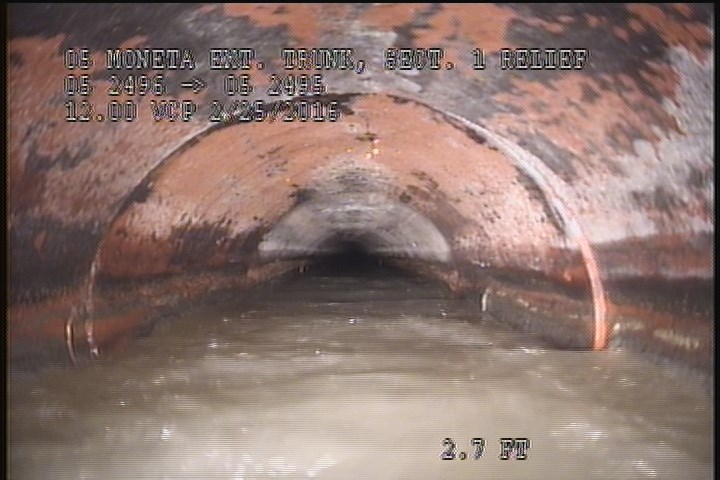

  • Water Level, 55 %of cross sectional area

    0 ft. - Water Level, 55 %of cross sectional area

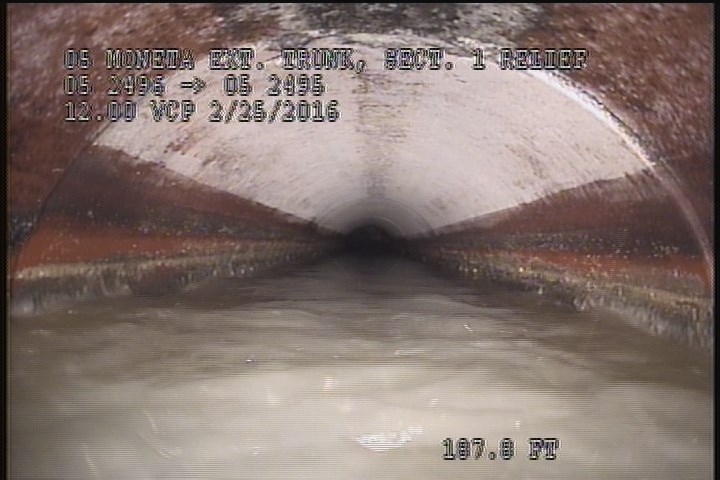

  • Water Mark, 75 %of cross sectional area

    0 ft. - Water Mark, 75 %of cross sectional area

All inspections of P20897Work order 0552371

Observations (5)

DistanceCodeObservation
0MWL—
206.2MGOSLIGHT GREASE THROUGHOUT THE REACH
207.9AMH12:50 PM
0MWM—
0AMH12:39 PM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-02-25T12:38:50-08:00
