Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 19, 2016, 09:18 PM

  • 05 2498_05 2497_2192016_132133.mp4

Date
02/19/2016
W/O
0552371
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00902
PipeID
P20899
Time
1:18 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7055
Sewer Name
05 MONETA EXT. TRUNK, SECT. 1 RELIEF
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 2498
Downstream MH
05 2497
Dir. of Survey
Downstream
Length Surveyed
261.5 ft.
Total Length
261.5 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 2498 to 05 2497
MH: 05 2498MH: 05 2497downstream0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. MWL - Water Level, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:20 PM260.7 ft. MGP - General Photograph - OFFSET JOINT260.7 ft. JOL - Joint Offset Large261.5 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH261.5 ft. AMH - Downstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 2497

Observation photos (3)

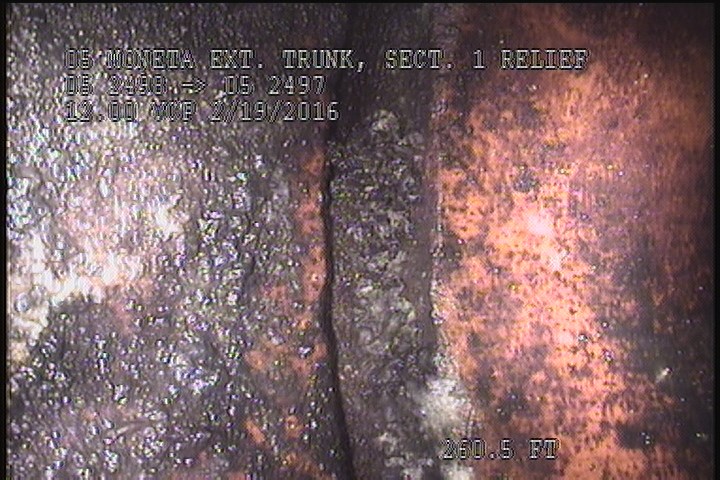

  • General Photograph - OFFSET JOINT

    260.7 ft. - General Photograph - OFFSET JOINT

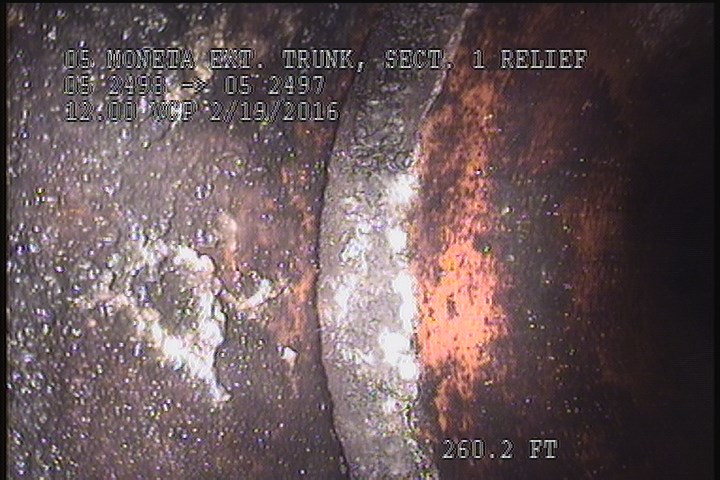

  • Joint Offset Large

    260.7 ft. - Joint Offset Large

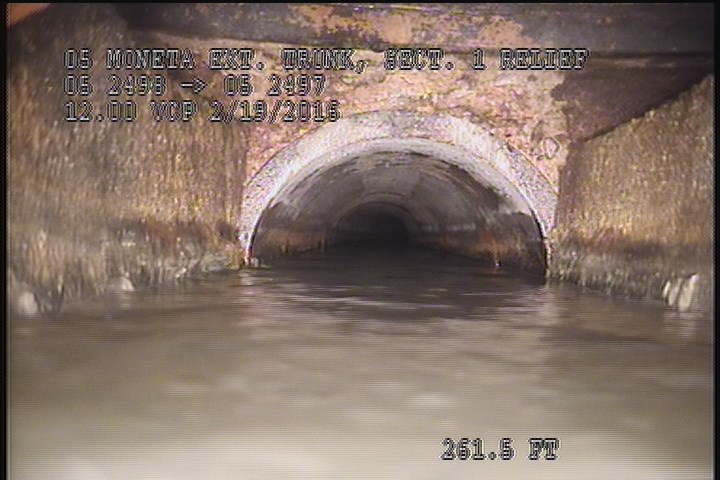

  • Downstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 2497

    261.5 ft. - Downstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 2497

All inspections of P20899Work order 0552371

Observations (7)

DistanceCodeObservation
261.5MGOSLIGHT GREASE THROUGHOUT THE REACH
260.7MGPOFFSET JOINT
0MWM—
0MWL—
0AMH1:20 PM
260.7JOL—
261.5AMHABLE TO ZOOM IN TO MH. 2497

Properties (4)

additional_info
ENDED THE PULL AT THE OFFSET JOINT
custom_field_two
4
customer
LACSD
datetime
2016-02-19T13:18:29-08:00
