Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2016, 07:29 PM

  • 05 2508_05 1101A_2182016_113138.mp4

Date
02/18/2016
W/O
0552371
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00902
PipeID
P20910
Time
11:29 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7053
Sewer Name
05 MONETA EXT. TRUNK, SECT. 1 RELIEF
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 2508
Downstream MH
05 1101A
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 2508 to 05 1101A
MH: 05 2508MH: 05 1101Adownstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:30 AM0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH2.1 ft. AMH - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 1101A

Observation photos (3)

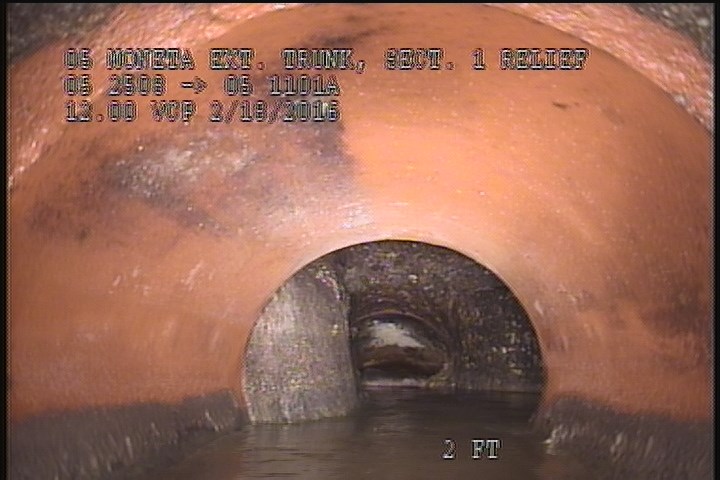

  • Water Level, 35 %of cross sectional area

    0 ft. - Water Level, 35 %of cross sectional area

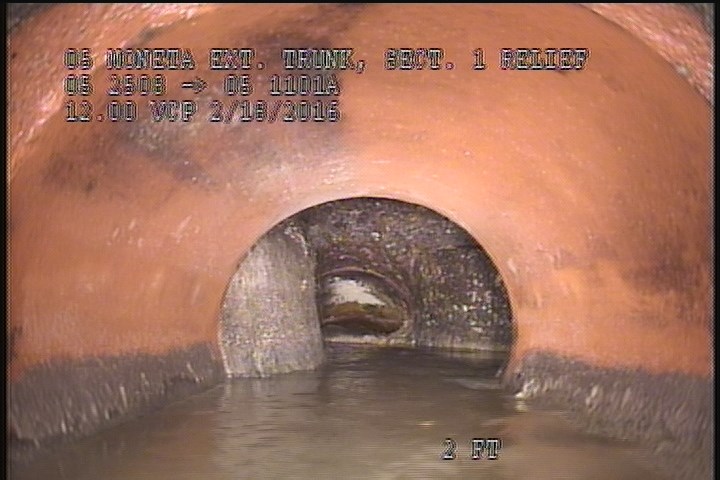

  • Upstream Manhole, Survey Begins - 11:30 AM

    0 ft. - Upstream Manhole, Survey Begins - 11:30 AM

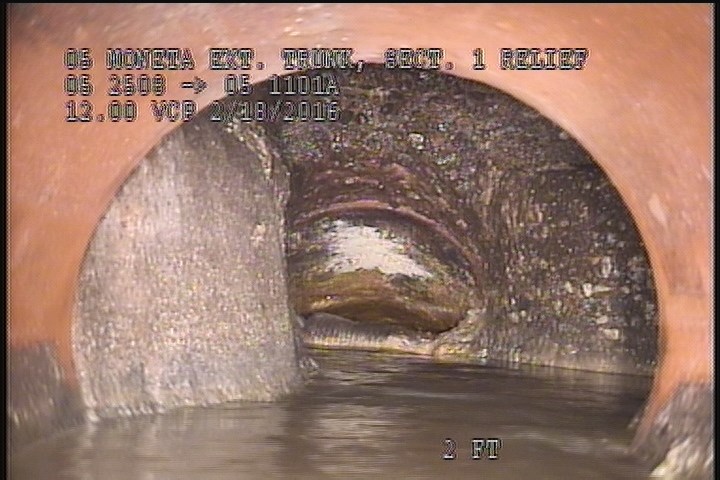

  • Upstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 1101A

    2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN TO MH. 1101A

All inspections of P20910Work order 0552371

Observations (5)

DistanceCodeObservation
2MGOSLIGHT GREASE THROUGHOUT THE REACH
2.1AMHABLE TO ZOOM IN TO MH. 1101A
0MWL—
0AMH11:30 AM
0MWM—

Properties (4)

additional_info
JUST GOING TO ZOOM IN D/S TO MH. 1101A
custom_field_two
4
customer
LACSD
datetime
2016-02-18T11:29:36-08:00
