Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2016, 05:54 PM

  • 05 2513_05 2512_2182016_095530.mp4

Date
02/18/2016
W/O
0552371
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00902
PipeID
P20915
Time
9:54 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7053
Sewer Name
05 MONETA EXT. TRUNK, SECT. 1 RELIEF
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 2513
Downstream MH
05 2512
Dir. of Survey
Downstream
Length Surveyed
293.3 ft.
Total Length
293.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 2513 to 05 2512
MH: 05 2513MH: 05 2512downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:54 AM2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO, Start76 ft. MGO - General Observation - CHIPPING @ 09 O'CLOCK115.6 ft. MGO - General Observation - CHIPPING FROM 08 TO 04 O'CLOCK185.9 ft. MGP - General Photograph - GREASE291.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO, Finish291.6 ft. MGO - General Observation - CHIPPING @ THE JOINTS THROUGHOUT THE REACH293.3 ft. AMH - Downstream Manhole, Survey Ends - 10:13 AM

Observation photos (3)

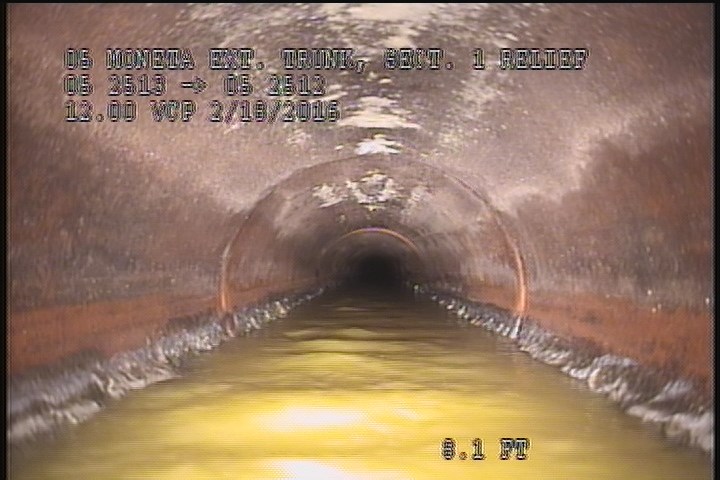

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO, Start

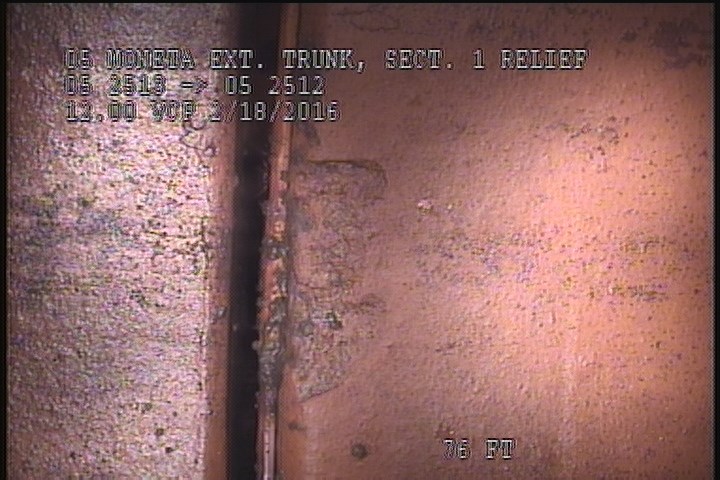

  • General Observation - CHIPPING @ 09 O'CLOCK

    76 ft. - General Observation - CHIPPING @ 09 O'CLOCK

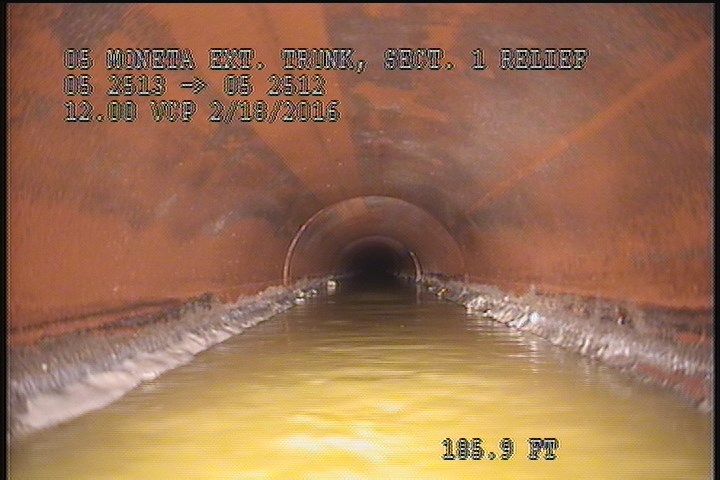

  • General Photograph - GREASE

    185.9 ft. - General Photograph - GREASE

All inspections of P20915Work order 0552371

Observations (10)

DistanceCodeObservation
291.6DAGS—
76MGOCHIPPING @ 09 O'CLOCK
0MWL—
0MWM—
2DAGS—
293.3AMH10:13 AM
185.9MGPGREASE
115.6MGOCHIPPING FROM 08 TO 04 O'CLOCK
0AMH9:54 AM
291.6MGOCHIPPING @ THE JOINTS THROUGHOUT THE REACH

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-02-18T09:54:15-08:00
