Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2016, 04:35 PM

  • 05 2514_05 2513_2182016_093748.mp4

Date
02/18/2016
W/O
0552371
Weather
Damp
Operator/Surveyor
MIRANDA
Sewer ID
Z00902
PipeID
P20916
Time
8:35 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7053
Sewer Name
05 MONETA EXT. TRUNK, SECT. 1 RELIEF
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20160218AM_MONETA_EXTENSION_TRUNK_SECTION_1_RELLIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 2513
Downstream MH
05 2514
Dir. of Survey
Upstream
Length Surveyed
61.1 ft.
Total Length
61.1 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 2513 to 05 2514
MH: 05 2513MH: 05 2514upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:48 AM1.9 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 02 O'CLOCK2.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH54.1 ft. JSM - Joint Separated Medium61.1 ft. AMH - Downstream Manhole, Survey Begins - 9:37 AM61.1 ft. MWM - Water Mark, 55 %of cross sectional area61.1 ft. MWL - Water Level, 45 %of cross sectional area

Observation photos (3)

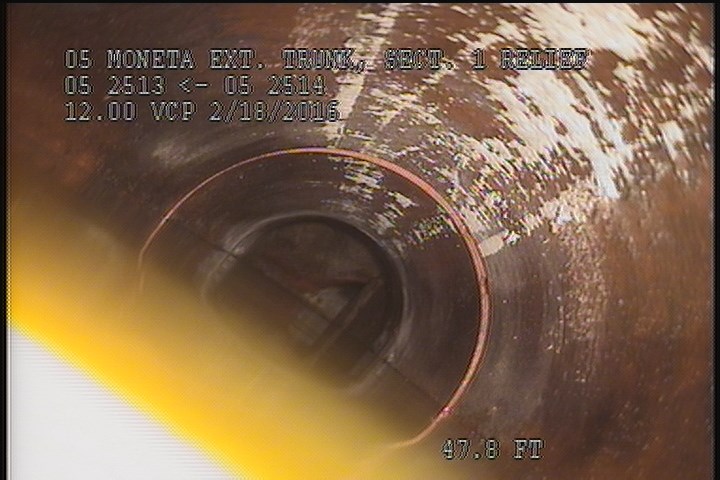

  • Water Mark, 55 %of cross sectional area

    0 ft. - Water Mark, 55 %of cross sectional area

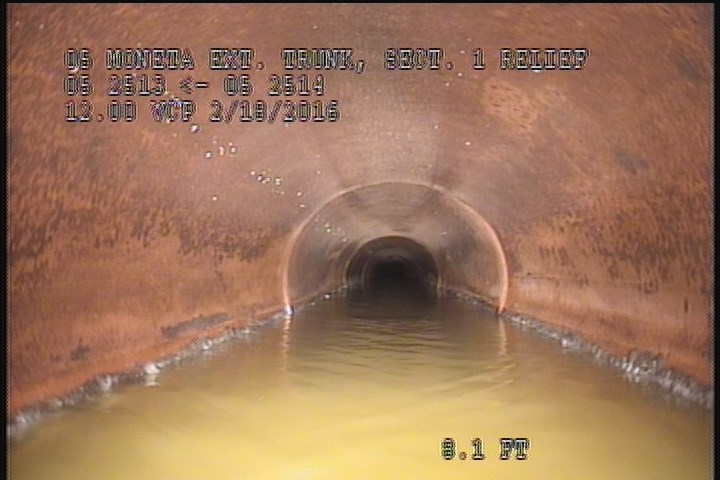

  • Water Level, 45 %of cross sectional area

    0 ft. - Water Level, 45 %of cross sectional area

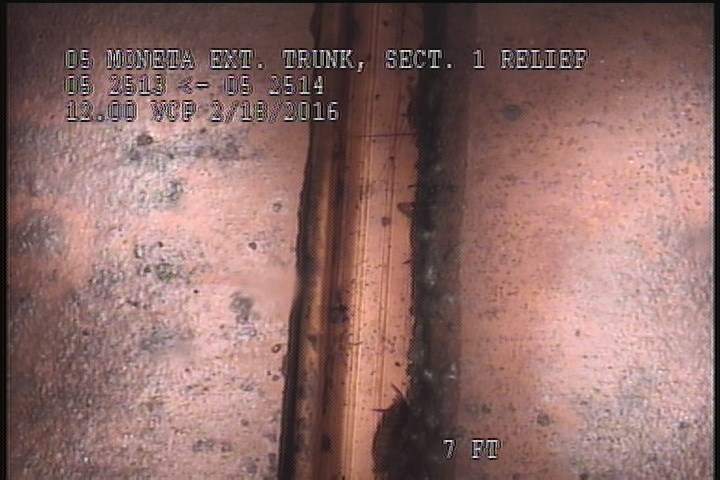

  • Joint Separated Medium

    7 ft. - Joint Separated Medium

All inspections of P20916Work order 0552371

Observations (7)

DistanceCodeObservation
61.1AMH9:48 AM
0AMH9:37 AM
7JSM—
58.9MGOSLIGHT GREASE THROUGHOUT THE REACH
0MWM—
59.2MGOACTIVE CONN. INSIDE THE MH. @ 02 O'CLOCK
0MWL—

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2016-02-18T08:35:12-08:00
year_laid
19960419
