Wastewater/Activity/PacpInspection/1.0Feb 16, 2016, 09:27 AM
05 2591_05 2590_2162016_050521.mp4
- Date
- 02/16/2016
- W/O
- 0547039
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01131
- PipeID
- P25295
- Time
- 1:27 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0055
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- 20160216MDM_COLDEN_AVENUE_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 2590
- Downstream MH
- 05 2591
- Dir. of Survey
- Upstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

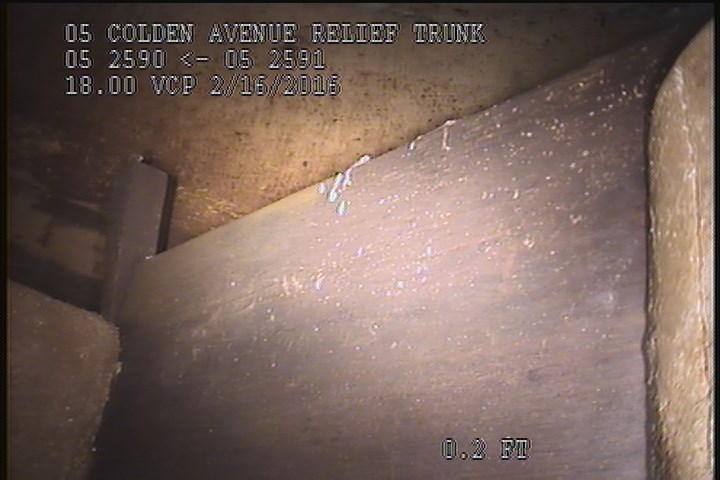

0 ft. - Water Level, 80 %of cross sectional area - STOPLOG IN PLACE HOLDING WATER

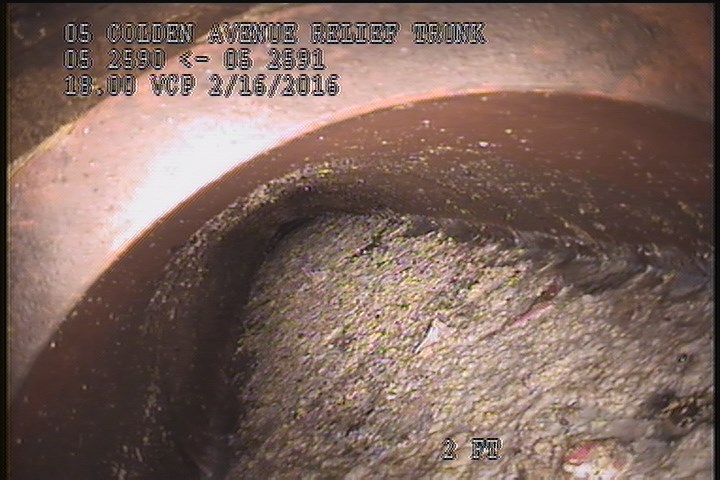

2 ft. - General Photograph - UPLEG SIPHON

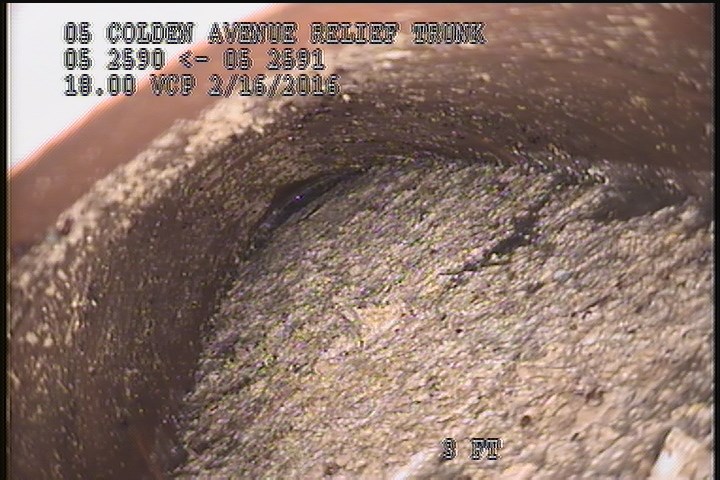

3 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON SOUTH
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | STOPLOG IN PLACE HOLDING WATER |
| 0 | AMH | 4:40AM |
| 3 | MSA | UPLEG DOWNSTREAM SIPHON SOUTH |
| 2 | MGP | UPLEG SIPHON |
Properties (4)
- additional_info
- UPLEG DOWNSTREAM SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-16T01:27:50-08:00
