Wastewater/Activity/PacpInspection/1.0Feb 16, 2016, 04:51 PM
- Date
- 02/16/2016
- W/O
- 0547071
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00192
- PipeID
- P11044
- Time
- 8:51 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7050
- Sewer Name
- H JOINT OUTFALL H - UNIT 8J
- City
- BALDWIN PARK
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- 20160216AM_JOINT_OUTFALL_H_UNIT_8J
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- H 0638
- Downstream MH
- H 0637
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

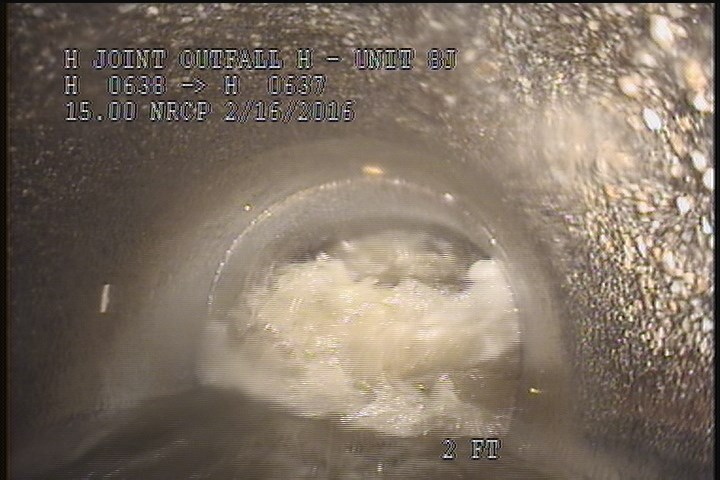

0 ft. - Upstream Manhole, Survey Begins - 9:00 AM

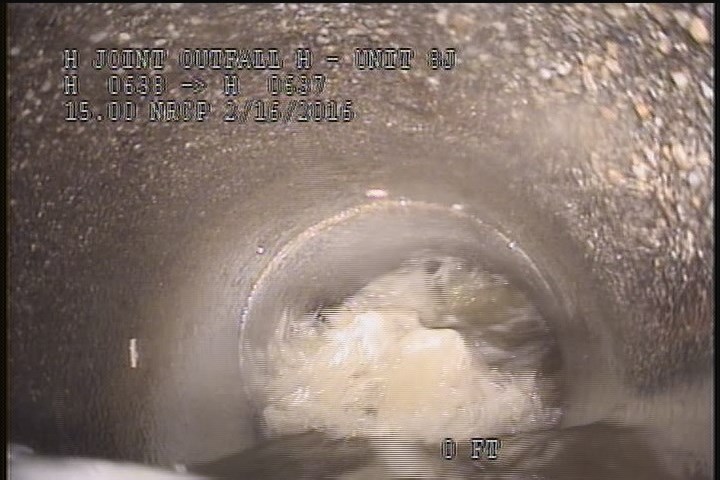

0 ft. - Water Level, 100 %of cross sectional area

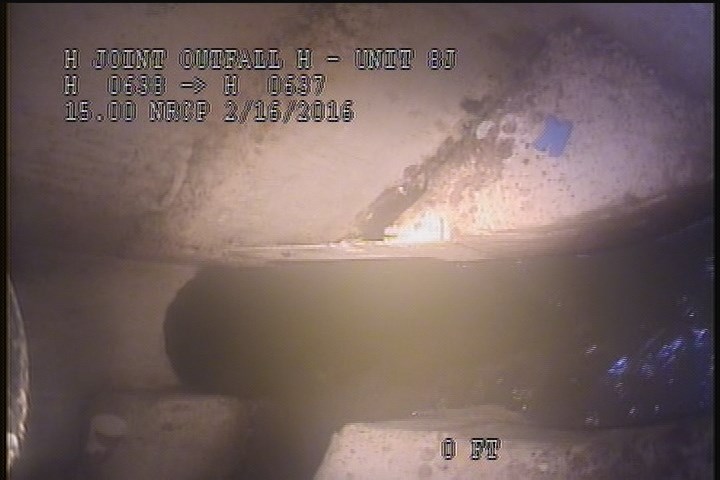

0 ft. - General Observation - STOPLOG IN PLACE INSIDE THE MH. @ 09 O'CLOCK

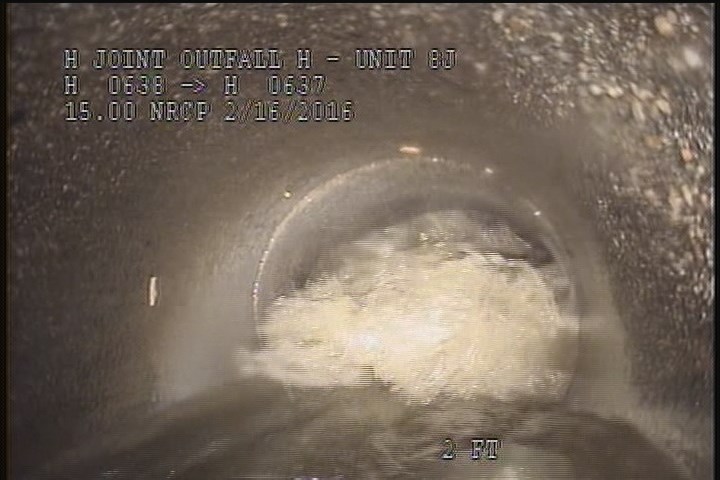

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO

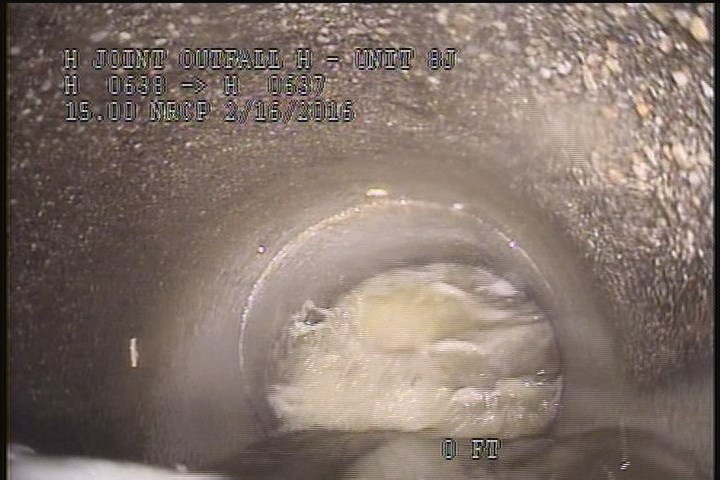

2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 2 | SAV | — |
| 2 | SSS | — |
| 0 | AMH | 9:00 AM |
| 0 | MWL | — |
| 0 | MGO | STOPLOG IN PLACE INSIDE THE MH. @ 09 O'CLOCK |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 04 O'CLOCK |
Properties (5)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON, N/E BARREL
- custom_field_three
- EXP. AGG. & SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-16T08:51:45-08:00
