Wastewater/Activity/PacpInspection/1.0Feb 12, 2016, 10:48 AM
05 0381_05 0380_2122016_035446.mp4
- Date
- 02/12/2016
- W/O
- 0536428
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00432
- PipeID
- P05593
- Time
- 2:48 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0051
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160212MDM_DISTRICT_5_MAIN_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 05 0381
- Downstream MH
- 05 0380
- Dir. of Survey
- Downstream
- Length Surveyed
- 63.7 ft.
- Total Length
- 63.7 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

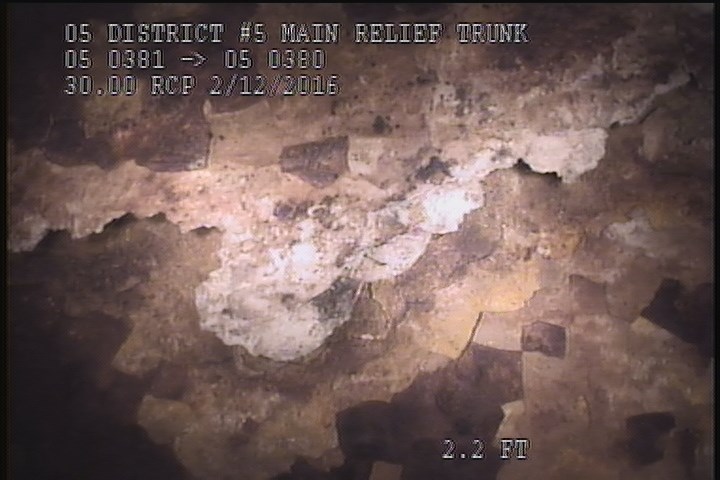

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING LAITANCE CAT

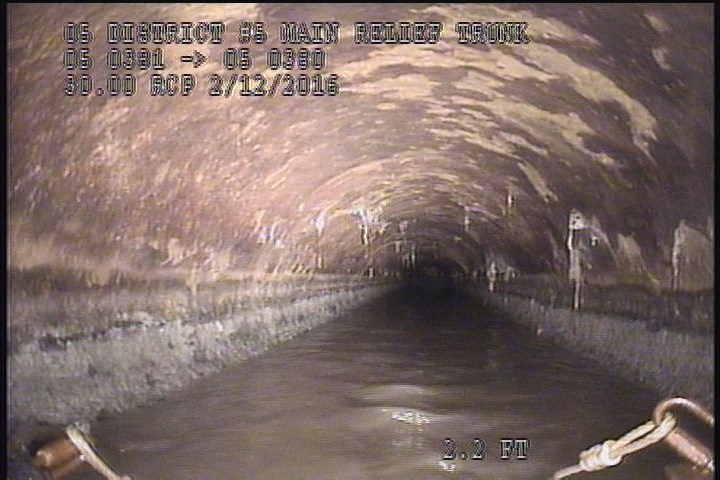

2.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

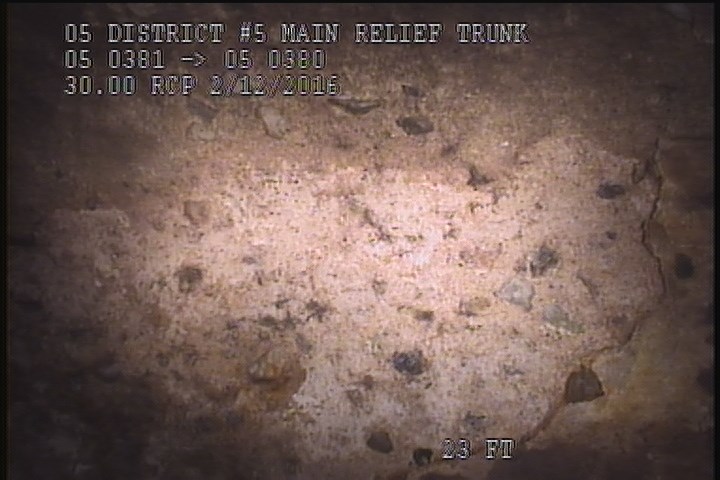

23 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

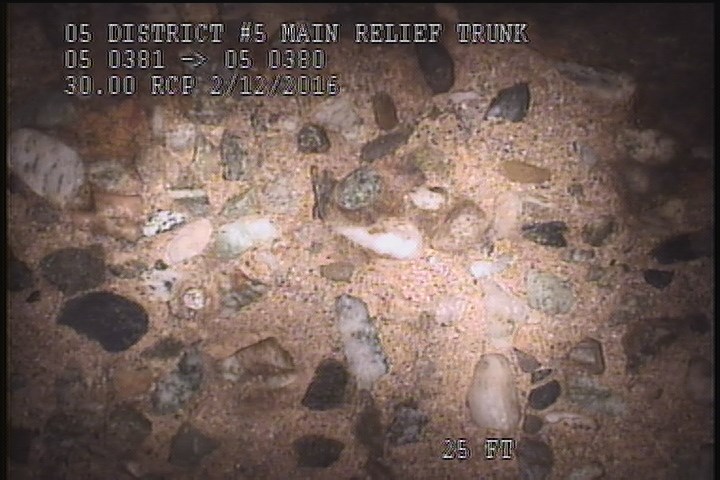

25 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 63.7 | AMH | 4:05AM |
| 23 | SAV | SEVERE AGG |
| 2.2 | SSS | — |
| 2 | SSS | PEELING LAITANCE CAT |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 25 | SAV | SEVERE AGG |
| 63.4 | SSS | — |
| 35.1 | SAV | — |
| 0 | AMH | 3:50AM |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SEVERE AGG VISIBLE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-02-12T02:48:41-08:00
