Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 08:35 AM
18 0036_18 0453_282016_012546.mp4
- Date
- 02/08/2016
- W/O
- 0547024
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00691
- PipeID
- P14305
- Time
- 12:35 AM
- Certificate
- U-1014-06022254
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0044
- Sewer Name
- 18 NORTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160205MDM_NORTH_PLANT_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 18 0453
- Downstream MH
- 18 0036
- Dir. of Survey
- Upstream
- Length Surveyed
- 13 ft.
- Total Length
- 13 ft.
- Structural Index
- 2
- Structural Quick
- 3224
- Structural Rating
- 14
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (3)

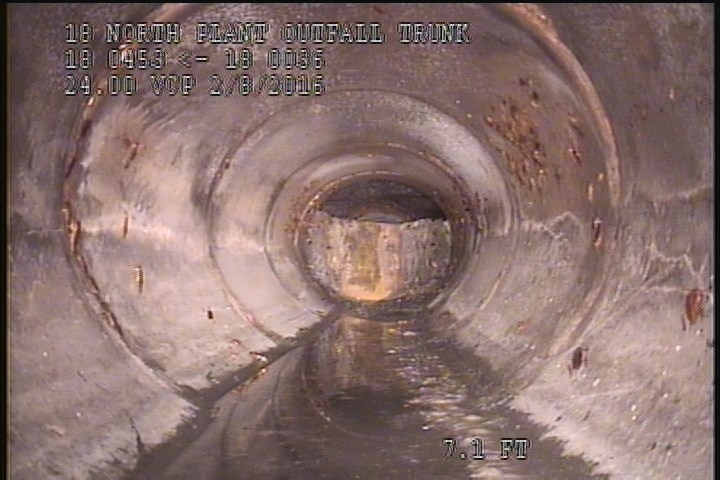

0 ft. - Water Level, 5 %of cross sectional area - STOPLOG IN PLACE UPSTREAM

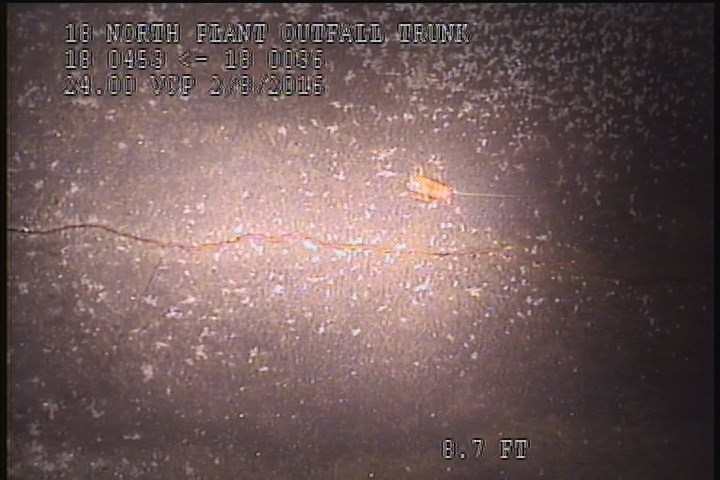

6.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

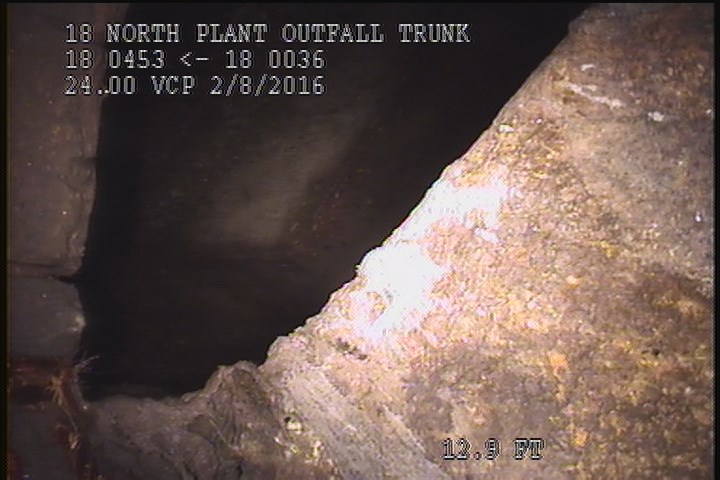

13 ft. - Upstream Manhole, Survey Ends - 1:40AM
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 6.9 | FL | SLIGHT |
| 6 | FC | SLIGHT |
| 0 | MWM | — |
| 12.1 | FC | SLIGHT |
| 8 | FL | HAIRLINE |
| 13 | AMH | 1:40AM |
| 10.9 | FC | HAIRLINE |
| 12.7 | FL | SLIGHT |
| 0 | AMH | 1:25AM |
| 0 | MWL | STOPLOG IN PLACE UPSTREAM |
| 8.7 | FC | HAIRLINE |
Properties (4)
- custom_field_three
- LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-02-08T00:35:31-08:00
