Wastewater/Activity/PacpInspection/1.0Feb 4, 2016, 09:06 AM
05 2207_05 2165_242016_034056.mp4
- Date
- 02/04/2016
- W/O
- 0536424
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00509
- PipeID
- P07308
- Time
- 1:06 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0042
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160201MDM_PRAIRIE_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 2207
- Downstream MH
- 05 2165
- Dir. of Survey
- Downstream
- Length Surveyed
- 43.7 ft.
- Total Length
- 43.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

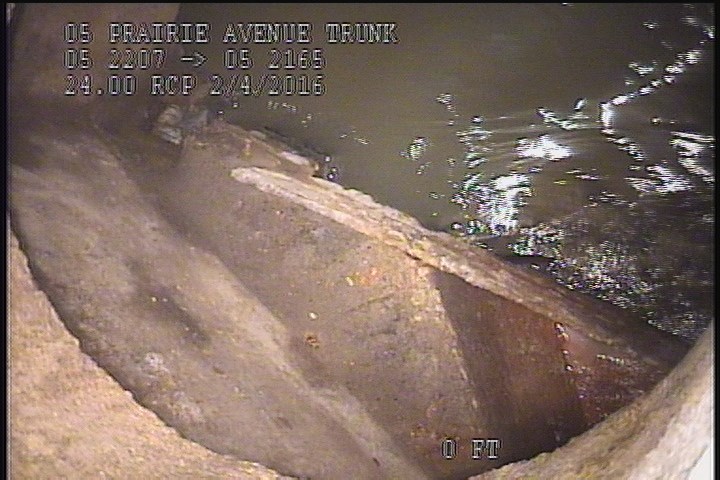

0 ft. - Water Level, 0 %of cross sectional area - NO FLOW STOPLOG IN PLACE

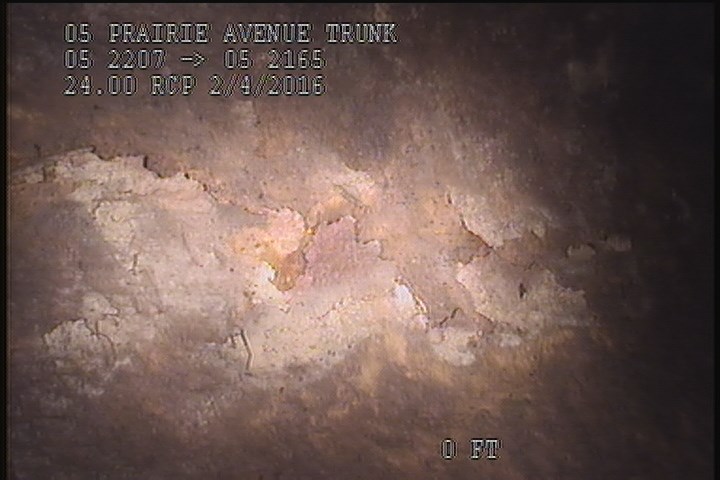

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - LAIYANCE COAT PEELING BLISTERING

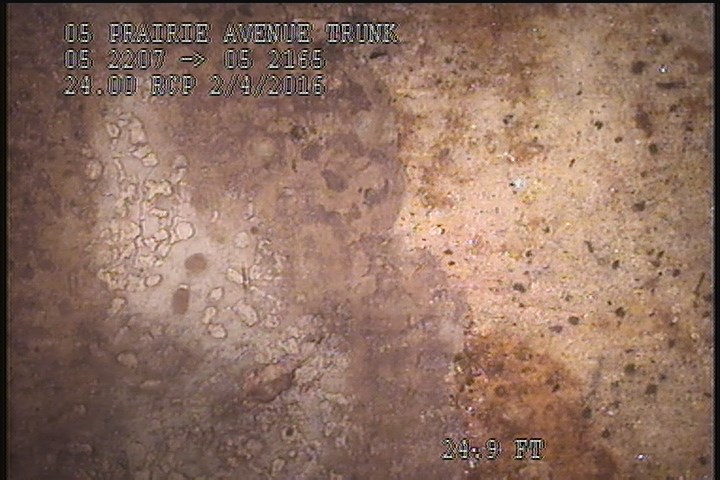

24 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 42.2 | SSS | BLISTERIN PEELING LAITANCE COAT |
| 0 | MWM | — |
| 0 | MWL | NO FLOW STOPLOG IN PLACE |
| 24 | SSS | PEELING LAITANCE COAT |
| 2 | SSS | LAIYANCE COAT PEELING BLISTERING |
| 43.7 | AMH | 3:35AM |
| 43.2 | MGO | Conn. @ Mh, 3 O' Clock. Active LARGE OUT GOING LINE |
| 0 | AMH | 3:15AM |
| 43.2 | MGO | Conn. @ Mh, 9 O' Clock. Active LARGE INCOMING LINE |
Properties (4)
- custom_field_three
- SPALLING LAITANCE COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-04T01:06:26-08:00
