Wastewater/Activity/PacpInspection/1.0Feb 3, 2016, 11:24 AM
05 2206_05 2205_232016_034032.mp4
- Date
- 02/03/2016
- W/O
- 0536424
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00509
- PipeID
- P07353
- Time
- 3:24 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0041
- Sewer Name
- 05 PRAIRIE AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160201MDM_PRAIRIE_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 2206
- Downstream MH
- 05 2205
- Dir. of Survey
- Downstream
- Length Surveyed
- 242.6 ft.
- Total Length
- 242.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (5)

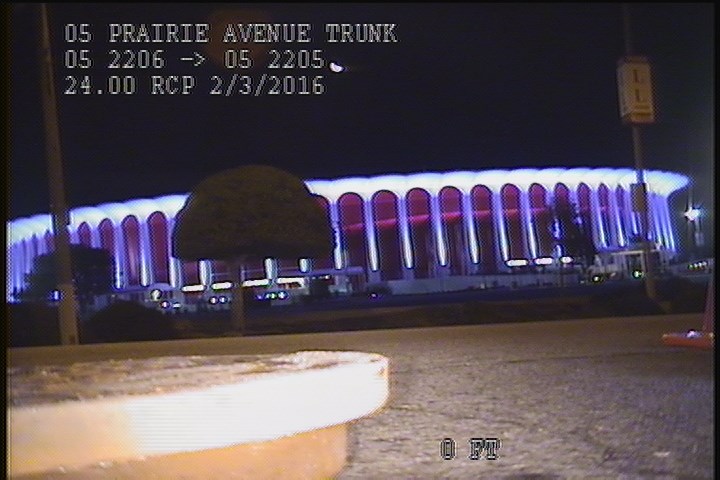

0 ft. - Upstream Manhole, Survey Begins - 3:30AM

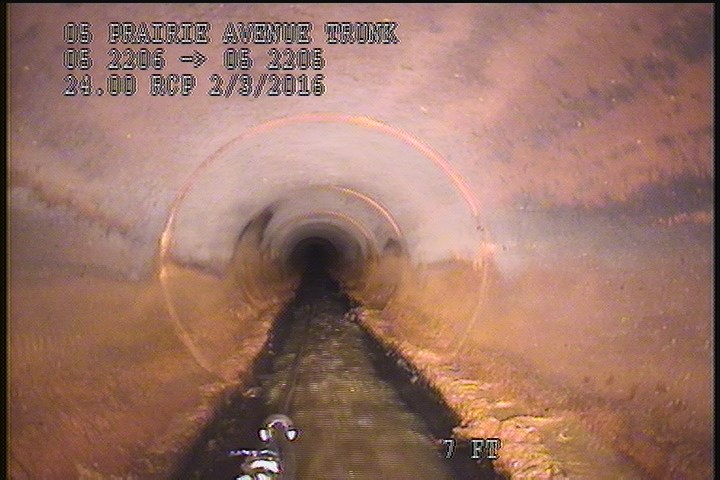

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

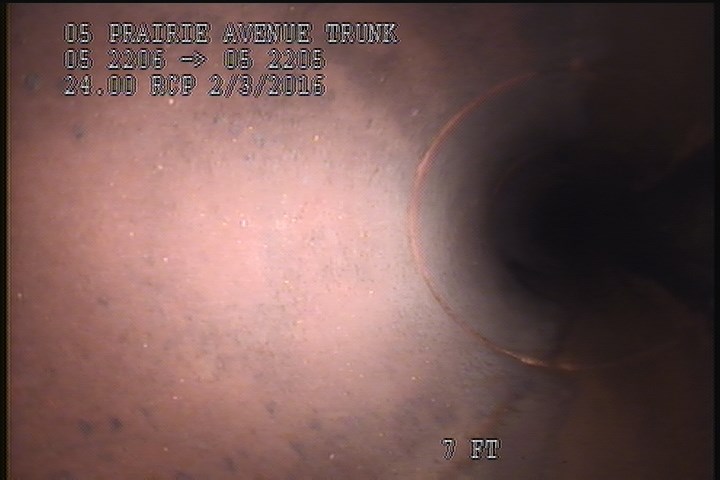

2 ft. - Material Change, Vitrified clay pipe - START

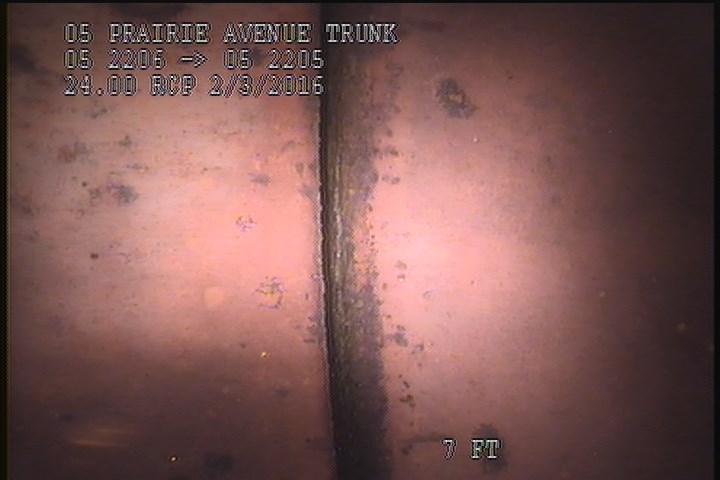

7 ft. - General Photograph - 24" VCP

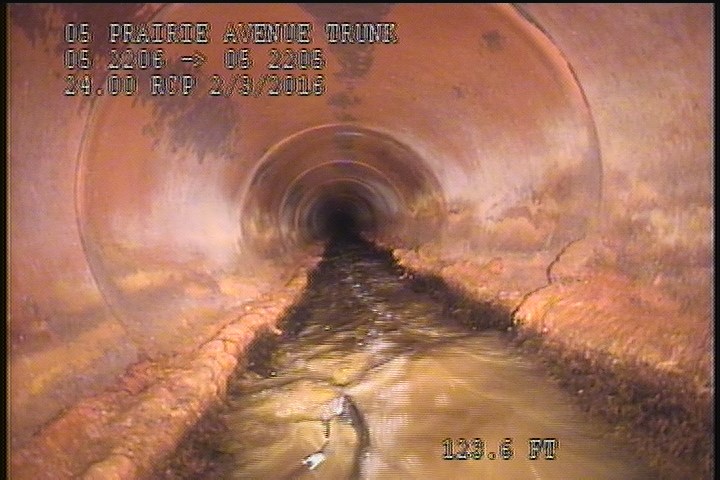

123.6 ft. - General Photograph - 24" VCP
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 123.6 | MGP | 24" VCP |
| 2 | DAGS | — |
| 242.6 | AMH | 4:10AM |
| 0 | MWM | — |
| 2 | RFJ | 5% |
| 7 | MGP | 24" VCP |
| 2 | MMC | START |
| 242.1 | MGO | MH CONN OPEN 3:00 |
| 0 | MGP | 24" VCP |
| 0 | AMH | 3:30AM |
| 242.1 | DAGS | — |
| 242.1 | MMC | — |
Properties (4)
- custom_field_three
- 24" VCP
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-03T03:24:44-08:00
