Wastewater/Activity/PacpInspection/1.0Nov 9, 2016, 05:54 PM
03 0261_03 0260B_1192016_102120.mp4
- Date
- 11/09/2016
- W/O
- 0602283
- Weather
- Dry
- Operator/Surveyor
- DEVIN FRANKLIN
- Sewer ID
- Z00385
- PipeID
- P04863
- Time
- 9:54 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7269
- Sewer Name
- 03 MARKET STREET TRUNK
- City
- LONG_BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- 20161104_DF_MARKET_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 03 0261
- Downstream MH
- 03 0260B
- Dir. of Survey
- Downstream
- Length Surveyed
- 89.2 ft.
- Total Length
- 89.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

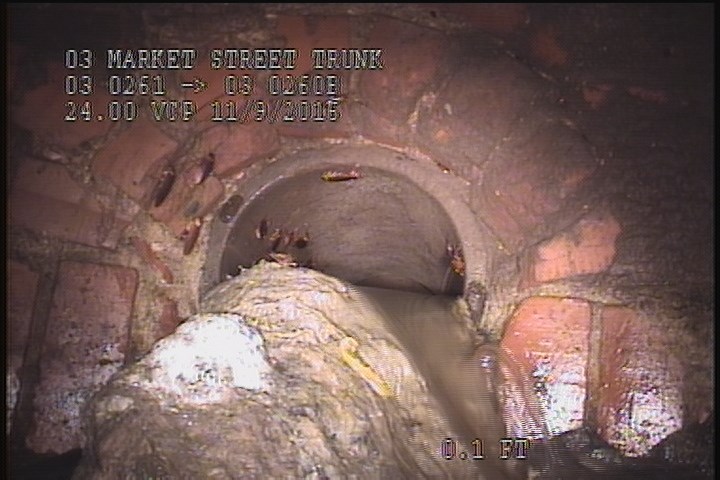

0 ft. - General Observation - ACTIVE CONN INSIDE MH 30% BLOCKED
6.7 ft. - General Observation - CHIPPING AT THE JOINT FROM 7 TO 5 O'CLOCK
6.7 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES
57.3 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6", 6" - PROTRUDING 2 INCHES, OPEN, CRACKED
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONN INSIDE MH 30% BLOCKED |
| 6.7 | MGO | CHIPPING AT THE JOINT FROM 7 TO 5 O'CLOCK |
| 0 | MWM | — |
| 86.9 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MGO | ROACHES @ MH |
| 0 | AMH | 10:19 AM |
| 57.3 | TFD | PROTRUDING 2 INCHES, OPEN, CRACKED |
| 86.9 | MGO | ROACHES THROUGHOUT THE REACH |
| 89.2 | AMH | 10:37 AM |
| 6.7 | CM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-09T09:54:50-08:00
