Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 3, 2016, 05:20 PM

  • 03 0277_03 0276A_1132016_110250.mp4

Date
11/03/2016
W/O
0602283
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00385
PipeID
P04881
Time
10:20 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7266
Sewer Name
03 MARKET STREET TRUNK
City
LONG BEACH
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
07
Purpose
Routine Assessment
Project
20161103MI_MARKET_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
03 0277
Downstream MH
03 0276A
Dir. of Survey
Downstream
Length Surveyed
288.4 ft.
Total Length
288.4 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
2500
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 03 0277 to 03 0276A
MH: 03 0277MH: 03 0276Adownstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:00AM0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - ROACHES AT MH2.3 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK, ACTIVE6.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO24.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Open26.7 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES28.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Capped73.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"127.1 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"130.3 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"176.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Open180.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.7 ft. CM - Crack Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES229.4 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"260.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES278.5 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Capped282.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"288.4 ft. AMH - Downstream Manhole, Survey Ends - 11:31AM288.4 ft. MGO - General Observation - CONNECTION AT THE MH, 9 OCLOCK, ACTIVE

Observation photos (4)

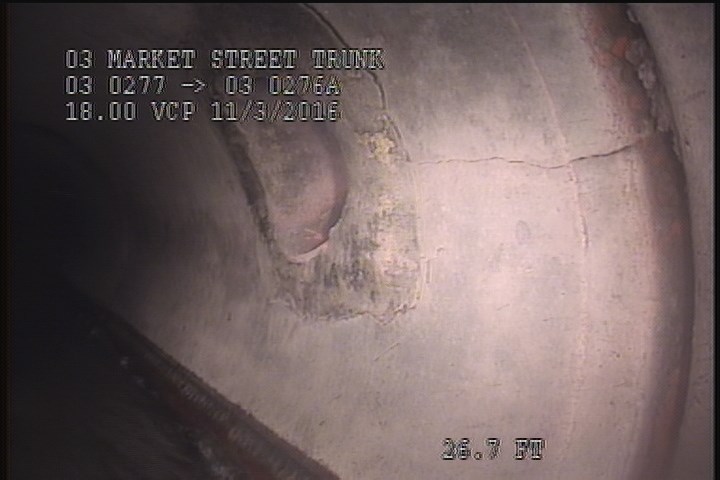

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    26.7 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

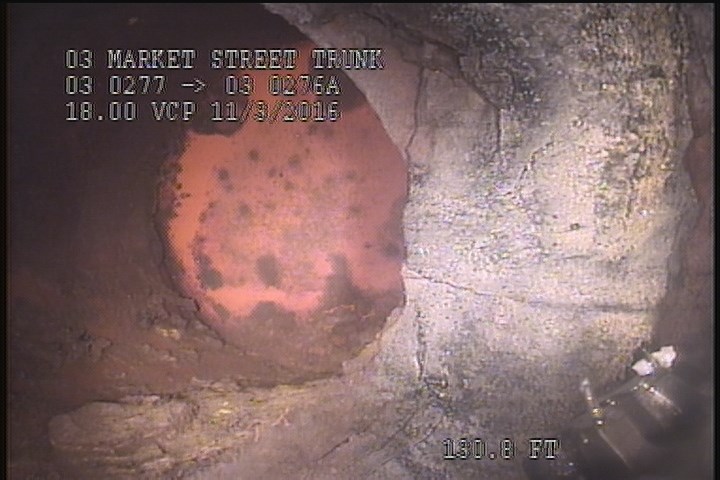

  • Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    130.3 ft. - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"

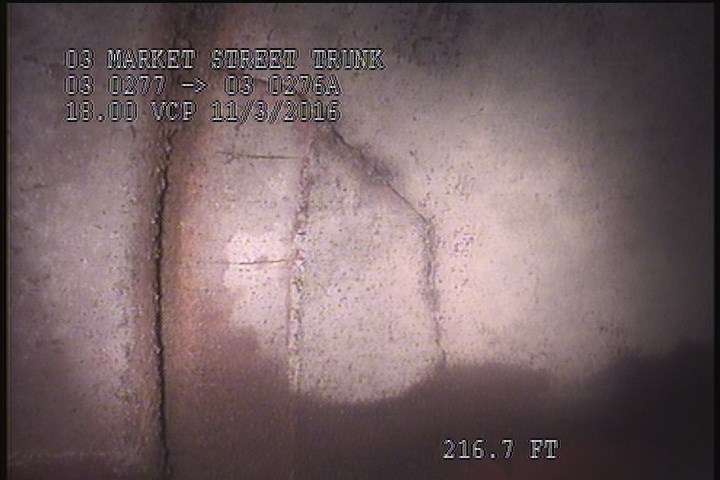

  • Crack Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES

    216.7 ft. - Crack Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES

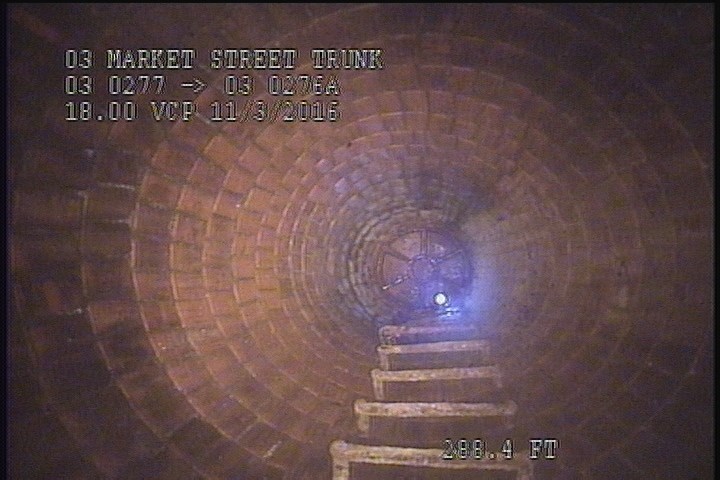

  • Downstream Manhole, Survey Ends - 11:31AM

    288.4 ft. - Downstream Manhole, Survey Ends - 11:31AM

All inspections of P04881Work order 0602283

Observations (23)

DistanceCodeObservation
176.5TFOpen
180.8TFC—
216.7CM—
260.9CL—
0MWL—
24.3TFOpen
282.7TFC—
278.5TBCCapped
229.4TBC—
288.4AMH11:31AM
0AMH11:00AM
130.3TBC—
2.3MGOCONNECTION AT MH 3 OCLOCK, ACTIVE
6.9DAGS—
28.5TFCCapped
127.1TBC—
78TFC—
233.7TFC—
73.5TFC—
288.4MGOCONNECTION AT THE MH, 9 OCLOCK, ACTIVE
0MWM—
0MGOROACHES AT MH
26.7CL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-11-03T10:20:16-07:00
