Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 3, 2016, 03:48 PM

  • 03 0279_03 0278A_1132016_091732.mp4

Date
11/03/2016
W/O
0602283
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00385
PipeID
P04884
Time
8:48 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7266
Sewer Name
03 MARKET STREET TRUNK
City
LONG BEACH
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
07
Purpose
Routine Assessment
Project
20161103MI_MARKET_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
03 0278A
Downstream MH
03 0279
Dir. of Survey
Upstream
Length Surveyed
278.8 ft.
Total Length
278.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 03 0278A to 03 0279
MH: 03 0278AMH: 03 0279upstream0 ft. AMH - Upstream Manhole, Survey Ends - 09:46AM0.1 ft. MGO - General Observation - CONNECTION AT MH, 3 OCLOCK, UNKOWN0.1 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE1.1 ft. MGO - General Observation - CONNECTION AT MH, 12 OCLOCK, CAPPED62 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"164.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"168.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"180.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES213.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"269 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES271.2 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"278.8 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE278.8 ft. MWM - Water Mark, 40 %of cross sectional area278.8 ft. MWL - Water Level, 20 %of cross sectional area278.8 ft. AMH - Downstream Manhole, Survey Begins - 09:14AM

Observation photos (5)

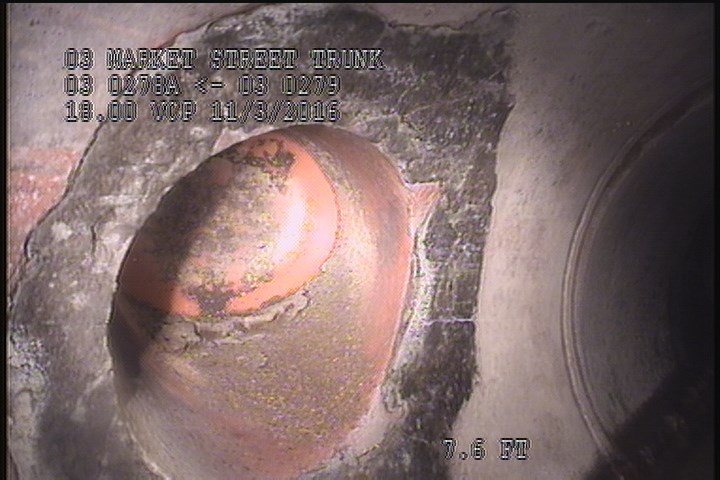

  • Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    7.6 ft. - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

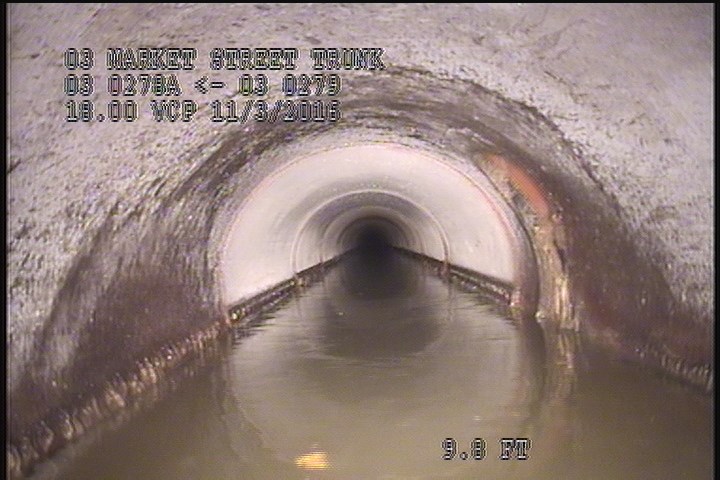

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    9.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

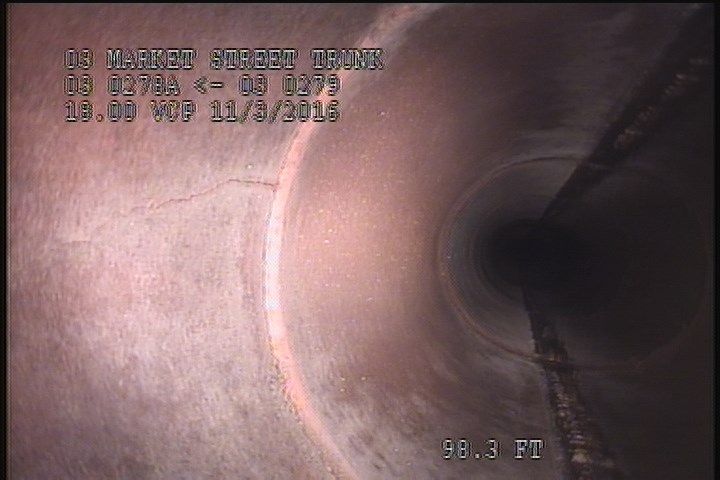

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    98.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

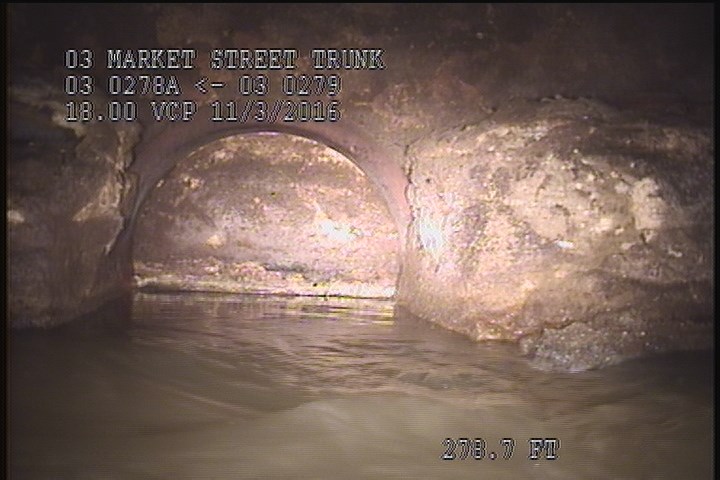

  • General Observation - CONNECTION AT MH, 12 OCLOCK, CAPPED

    277.7 ft. - General Observation - CONNECTION AT MH, 12 OCLOCK, CAPPED

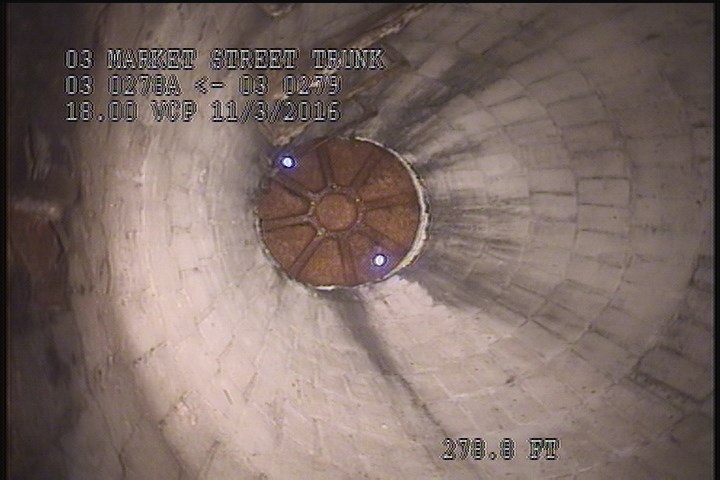

  • Upstream Manhole, Survey Ends - 09:46AM

    278.8 ft. - Upstream Manhole, Survey Ends - 09:46AM

All inspections of P04884Work order 0602283

Observations (20)

DistanceCodeObservation
12.1TFA—
0MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
277.7MGOCONNECTION AT MH, 12 OCLOCK, CAPPED
0MWM—
278.8AMH09:46AM
60.8TFC—
278.7MGOCONNECTION AT MH, 3 OCLOCK, UNKOWN
158.6TFC—
163.3TBA—
278.7MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
114.3TFC—
98.3CL—
216.8TFC—
65TFC—
7.6TBC—
0MWL—
0AMH09:14AM
110.4TFC—
212.9TFC—
9.8DAGS—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-11-03T08:48:59-07:00
