Wastewater/Activity/PacpInspection/1.0Nov 3, 2016, 03:45 PM
03 0278A_03 0278_1132016_085448.mp4
- Date
- 11/03/2016
- W/O
- 0602283
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00385
- PipeID
- P04883
- Time
- 8:45 AM
- Certificate
- U-115-06022628
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7266
- Sewer Name
- 03 MARKET STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- 20161103MI_MARKET_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 03 0278
- Downstream MH
- 03 0278A
- Dir. of Survey
- Upstream
- Length Surveyed
- 153.9 ft.
- Total Length
- 153.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

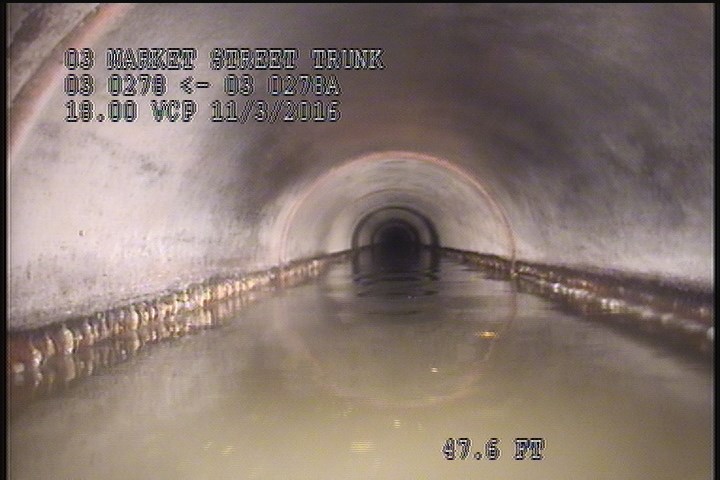

47.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

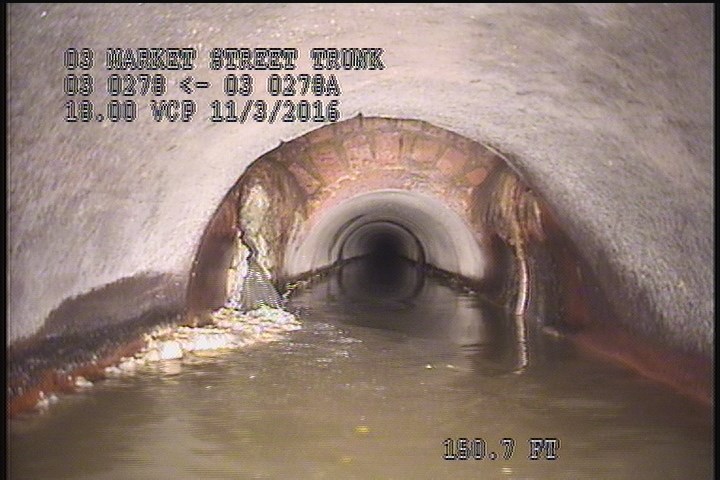

150.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO

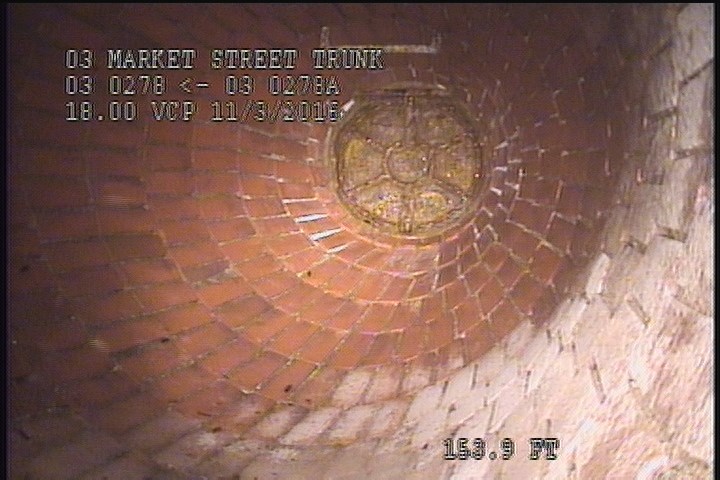

153.9 ft. - Upstream Manhole, Survey Ends - 09:10AM
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 153.7 | MGO | CONNECTION AT MH, 9 OCLOCK, ACTIVE |
| 47.6 | DAGS | — |
| 120.8 | TFA | — |
| 64.1 | TFC | — |
| 0 | AMH | 09:00AM |
| 60 | TFC | — |
| 150.7 | DAGS | — |
| 9.3 | TFC | — |
| 117.2 | TFC | — |
| 153.9 | AMH | 09:10AM |
| 8.2 | TF | Open |
| 0 | MWM | — |
| 14 | TFC | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-03T08:45:14-07:00
