Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 04:42 PM
02 2428_02 2427_1122016_100655.mp4
- Date
- 11/02/2016
- W/O
- 0602275
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00247
- PipeID
- P25964
- Time
- 9:42 AM
- Certificate
- U-115-06022628
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7265
- Sewer Name
- 02 DOUGLAS AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20161101MI_DOUGLAS_AVENUE_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 2428
- Downstream MH
- 02 2427
- Dir. of Survey
- Downstream
- Length Surveyed
- 381.1 ft.
- Total Length
- 381.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

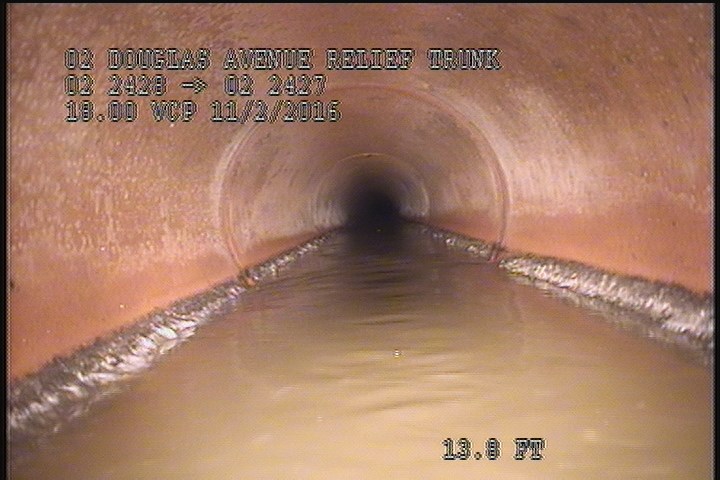

13.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

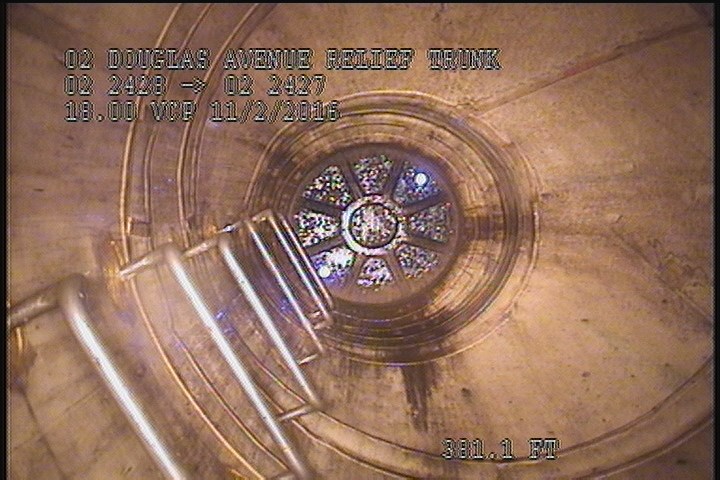

381.1 ft. - Downstream Manhole, Survey Ends - 10:20AM
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 13.8 | DAGS | — |
| 381.1 | AMH | 10:20AM |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 10:05AM |
| 0 | MGO | ROACHES AT MH |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-02T09:42:03-07:00
