Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 10:37 AM

  • 04 0069_04 0068_1112016_040020.mp4

Date
11/01/2016
W/O
0596909
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00415
PipeID
P11804
Time
3:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0326
Sewer Name
04 SHERMAN TRUNK
City
BEVERLY HILLS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20161101MDM_SHERMAN_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
04 0069
Downstream MH
04 0068
Dir. of Survey
Downstream
Length Surveyed
287.7 ft.
Total Length
287.7 ft.
Structural Index
3
Structural Quick
5235
Structural Rating
33
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
37
Pipe schematic from manhole 04 0069 to 04 0068
MH: 04 0069MH: 04 0068downstream-0.9 ft. MGO - General Observation - 18" VCP0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 3:50AM0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT3 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL6 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT24.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H26.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open31.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active45.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES65.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 5" - Open BROKEN PIPE BOTTOM86.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped104.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE107.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped147.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open147.8 ft. HSV - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES - 2" X2"186.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped194.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active206.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H208.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped225 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL225.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H227.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL227.8 ft. HSV - Hole Soil Visible, at 01 o'clock, within 8 inches of joint: YES - 1" X1"229.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped231.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active268.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped286.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active286.8 ft. AMH - Downstream Manhole, Survey Ends - 4:25AM

Observation photos (5)

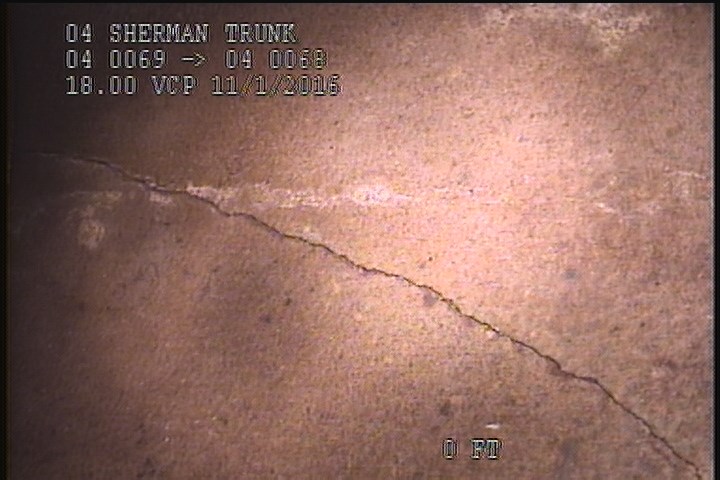

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    3 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

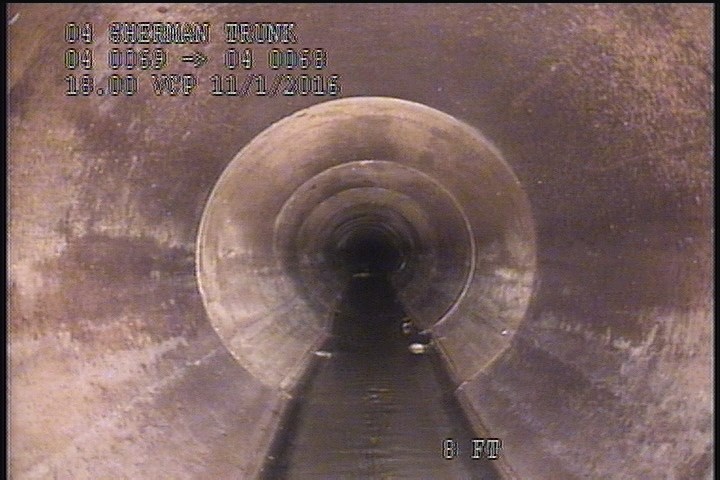

  • Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL

    6 ft. - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL

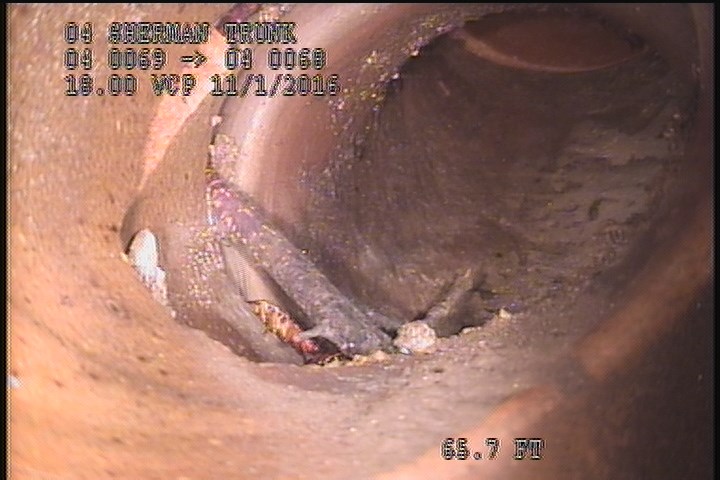

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 5" - Open BROKEN PIPE BOTTOM

    65.7 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 5" - Open BROKEN PIPE BOTTOM

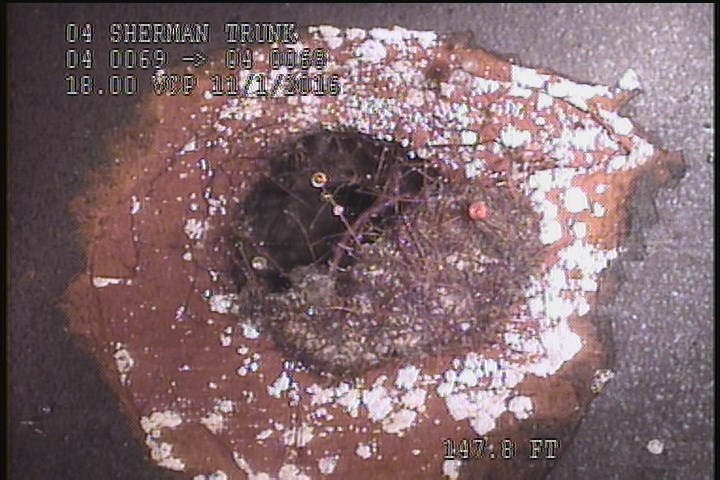

  • Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES - 2" X2"

    147.8 ft. - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES - 2" X2"

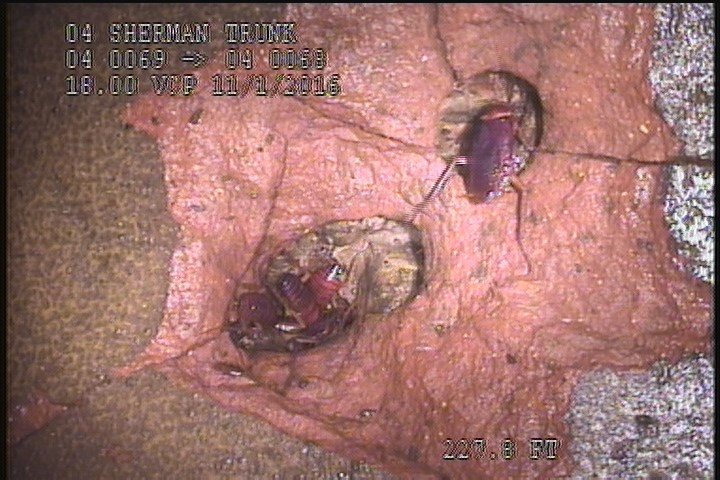

  • Hole Soil Visible, at 01 o'clock, within 8 inches of joint: YES - 1" X1"

    227.8 ft. - Hole Soil Visible, at 01 o'clock, within 8 inches of joint: YES - 1" X1"

All inspections of P11804Work order 0596909

Observations (32)

DistanceCodeObservation
231.3TFActive
0MGOConn. @ Mh, 3 O' Clock. Active
86.4TFCCapped
225FLSL
31.2TBActive
206.6FCH
3FCSLIGHT
0AMH3:50AM
104.6FLHAIRLINE
147.4TFOpen
225.1FLH
107.4TFCCapped
227.8FCSL
194.2TBActive
3FSSLIGHT
45.4DAE—
227.8HSV1" X1"
6FCSL
186.9TFCCapped
-0.9MGO18" VCP
229.5TFCCapped
286.3MGOConn. @ Mh, 9 O' Clock. Active
65.7TFDOpen BROKEN PIPE BOTTOM
268.7TFCCapped
0MWM—
208.4TFCCapped
0MWL—
286.8AMH4:25AM
26.2TFOpen
24.4FLH
147.8HSV2" X2"
6FSSLIGHT

Properties (4)

custom_field_three
SMALL HOLES SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-11-01T03:37:11-07:00
