Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 10:48 AM

  • 04 0049A_04 0049_1112016_052734.mp4

Date
11/01/2016
W/O
0596814
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00412
PipeID
P11779
Time
3:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0327
Sewer Name
04 LA CIENEGA BOULEVARD TRUNK
City
BERVERLY HILLS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20161101MDM_LA_CIENEGA_BOULEVARD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
04 0049A
Downstream MH
04 0049
Dir. of Survey
Downstream
Length Surveyed
153.6 ft.
Total Length
153.6 ft.
Structural Index
3
Structural Quick
5241
Structural Rating
46
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole 04 0049A to 04 0049
MH: 04 0049AMH: 04 0049downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 5:25AM3.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES6.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT6.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active8.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHHT8.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL14.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL16 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H16 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL18.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL19.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish23.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL26.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL27.7 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL28.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS28.8 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS28.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT28.8 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS28.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS42.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped45.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open45.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped85.2 ft. HVV - Hole Void Visible, from 09 to 11 o'clock, within 8 inches of joint: YES86.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open89 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT89 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open93.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SLIGHT128.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped138 ft. HSV - Hole Soil Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - 2"X 6"139.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open141.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active153.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE153.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT153.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE153.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT153.6 ft. AMH - Downstream Manhole, Survey Ends - 5:55AM

Observation photos (4)

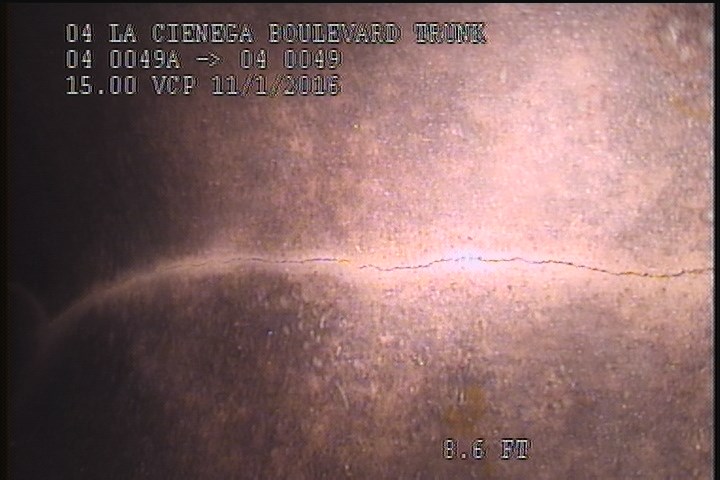

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHHT

    8.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHHT

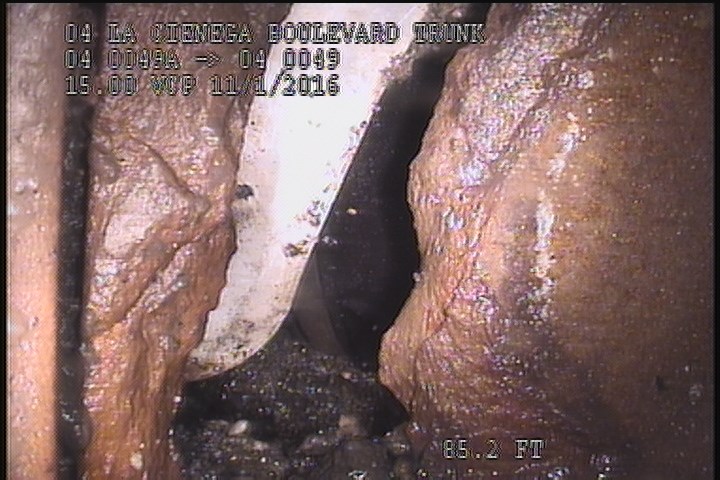

  • Hole Void Visible, from 09 to 11 o'clock, within 8 inches of joint: YES

    85.2 ft. - Hole Void Visible, from 09 to 11 o'clock, within 8 inches of joint: YES

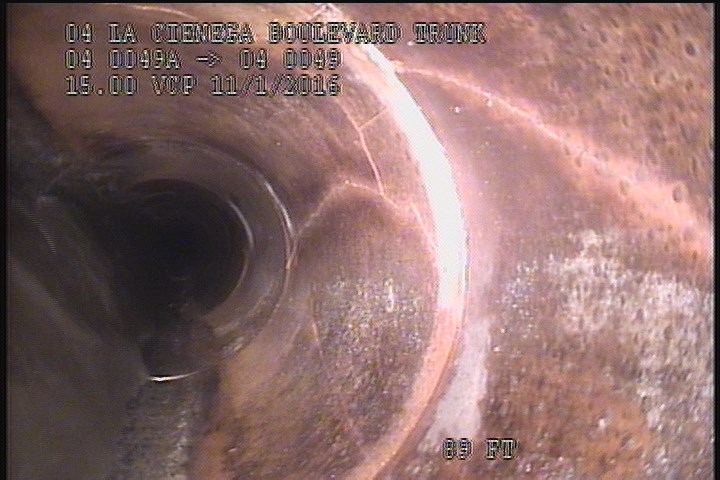

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    89 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

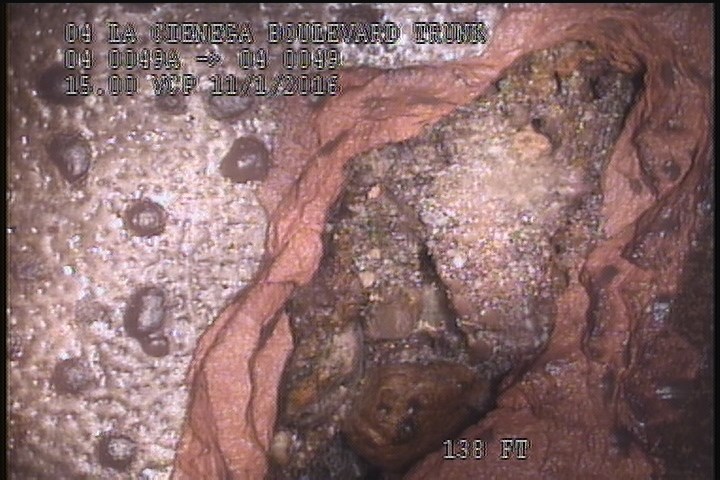

  • Hole Soil Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - 2"X 6"

    138 ft. - Hole Soil Visible, from 10 to 12 o'clock, within 8 inches of joint: YES - 2"X 6"

All inspections of P11779Work order 0596814

Observations (39)

DistanceCodeObservation
153.2FC30% HAIRLINE
139.4TFOpen
28.8FCHAIRLINE AT JOINTS
153.2FC30% SLIGHT
138HSV2"X 6"
153.2FL20% HAIRLINE
6.9TFActive
153.2FL20% SLIGHT
18.9FCSL
28.8FLSLIGHT AT JOINTS
89FMSLIGHT
153.6AMH5:55AM
23.6FCSL
0MWL—
85.2HVV—
0MWM—
128.5TFCCapped
45.4TFCCapped
3.4DAE—
0MGOConn. @ Mh, 3 O' Clock. Active
27.7FCSL
93.4FMSLIGHT
6.1FCSLIGHT
28.8FLSLIGHT
14.1FCSL
26.6FCSL
141.2TFActive
28.8FLHAIRLINE AT JOINTS
19.1FL—
42.7TFCCapped
45.2TBOpen
28.8FCSLIGHT AT JOINTS
89TFOpen
0AMH5:25AM
86.7TFOpen
8.6FLSLIGHHT
16FLH
8.6FCSL
16FCSL

Properties (4)

custom_field_three
HOLES IN PIPE VOID AND SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-11-01T03:48:56-07:00
