Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 10:44 AM

  • 04 0050_04 0049A_1112016_045311.mp4

Date
11/01/2016
W/O
0596814
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00412
PipeID
P22246
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0327
Sewer Name
04 LA CIENEGA BOULEVARD TRUNK
City
BERVERLY HILLS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20161101MDM_LA_CIENEGA_BOULEVARD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
04 0050
Downstream MH
04 0049A
Dir. of Survey
Downstream
Length Surveyed
161.5 ft.
Total Length
161.5 ft.
Structural Index
2
Structural Quick
5141
Structural Rating
79
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
83
Pipe schematic from manhole 04 0050 to 04 0049A
MH: 04 0050MH: 04 0049Adownstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT9.2 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE9.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open10.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE13.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H21.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL21.3 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H23.6 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL26.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H28.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL28.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL31.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES31.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H34.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H41.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES47.9 ft. H - Hole, at 02 o'clock, within 8 inches of joint: YES - 1" X1" POSSILE REPAIR50.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open52.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H68 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL70 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H75.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL75.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H83 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL88.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H92 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open93.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H108.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H114.7 ft. HSV - Hole Soil Visible, at 02 o'clock, within 8 inches of joint: YES - 1" X1"114.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H117.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open119.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL129.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SL130.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H130.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active132.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H132.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped136.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H145.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H155 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H155 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H157.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H161 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active161.5 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (2)

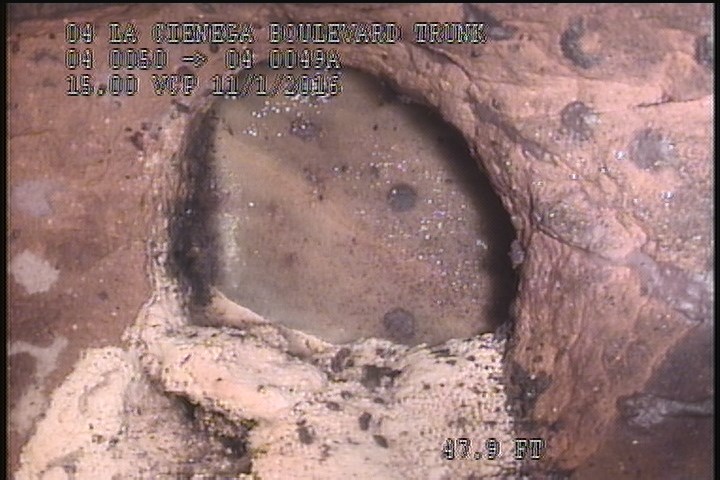

  • Hole, at 02 o'clock, within 8 inches of joint: YES - 1" X1" POSSILE REPAIR

    47.9 ft. - Hole, at 02 o'clock, within 8 inches of joint: YES - 1" X1" POSSILE REPAIR

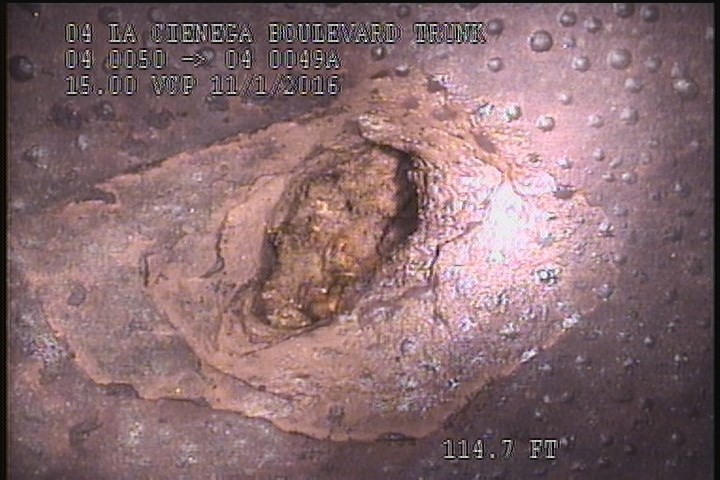

  • Hole Soil Visible, at 02 o'clock, within 8 inches of joint: YES - 1" X1"

    114.7 ft. - Hole Soil Visible, at 02 o'clock, within 8 inches of joint: YES - 1" X1"

All inspections of P22246Work order 0596814

Observations (46)

DistanceCodeObservation
114.9FCH
52.3FCH
75.4FCSL
21.3FCSL
155FLH
28.9FCSL
132.5FCH
26.5FMH
136.9FLH
88.4FCH
119.4FCSL
161.5AMH5:25AM
23.6FCSL
0MWL—
9.7TFOpen
93.4FLH
83FCSL
130.5FCH
155FLH
114.7HSV1" X1"
108.7FCH
9.2FCHAIRLINE
50.7TFOpen
10.9FLHAIRLINE
70FCH
21.3FCH
117.6TFOpen
41.8DAE—
6FCSLIGHT
31.6DAE—
130.5TBActive
75.4FCH
68FCSL
34.2FLH
0MWM—
0AMH4:50AM
161MGOConn. @ Mh, 3 O' Clock. Active
129.1FCSL
145.1FLH
92TFOpen
28.9FCSL
157.5FCH
13.7FCH
47.9H1" X1" POSSILE REPAIR
132.9TFCCapped
31.6FCH

Properties (4)

custom_field_three
HOLE IN PIPE SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-11-01T03:44:05-07:00
