Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 27, 2016, 12:21 PM

  • 18 0489_18 0488_1272016_051239.mp4

Date
01/27/2016
W/O
0547024
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14343
Time
4:21 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0033
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20160127MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
18 0489
Downstream MH
18 0488
Dir. of Survey
Downstream
Length Surveyed
331.8 ft.
Total Length
331.8 ft.
Structural Index
3
Structural Quick
3928
Structural Rating
43
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
43
Pipe schematic from manhole 18 0489 to 18 0488
MH: 18 0489MH: 18 0488downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 3:000 ft. MWL - Water Level, 20 %of cross sectional area2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT4.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SLIGHT12.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE17.1 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - SLIGHT25.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES25.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE25.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT28 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT28 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE28 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Start - HAIRLINE28 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT40.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish66.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT71.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Active80.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish142.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active178.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open192.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE198.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish218.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE224.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish228.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN242.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT242.9 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Start - HAIRLINE245.6 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - HAIRLINE246.7 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES, Finish250.4 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish263.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish321.7 ft. MWL - Water Level, 60 %of cross sectional area331.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - SLIGHT 20%331.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT 20%331.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE 30%331.3 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Finish - HAIRLINE 20%331.3 ft. MGO - General Observation - MH CONN 12:00 STOPLOG IN PLACE331.8 ft. AMH - Downstream Manhole, Survey Ends - 5:50AM

Observation photos (3)

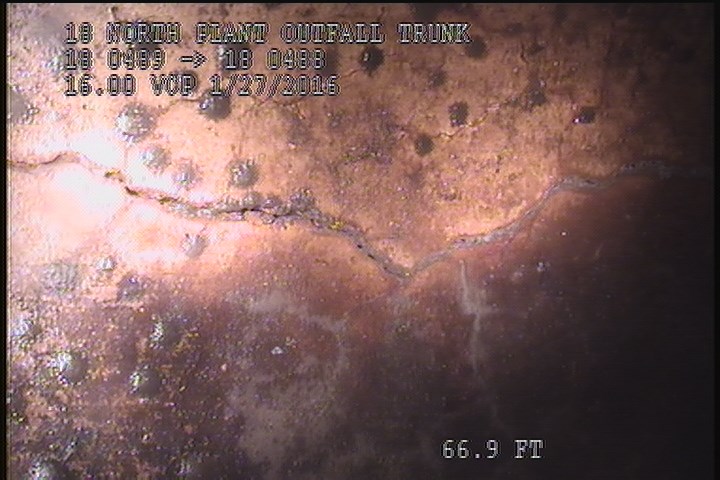

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    66.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

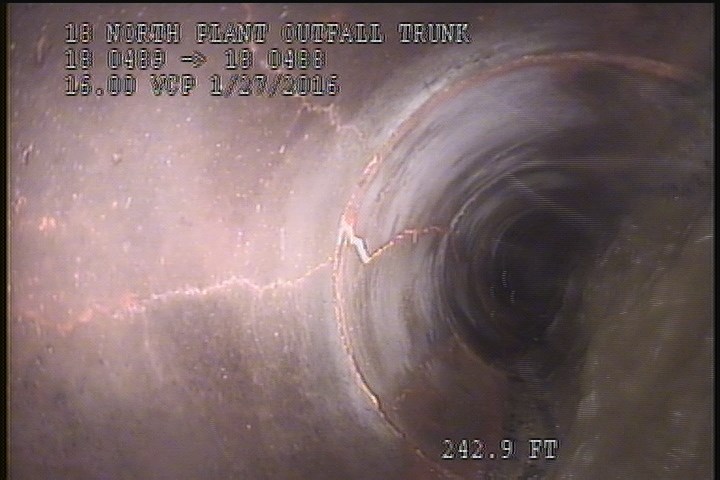

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    242.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

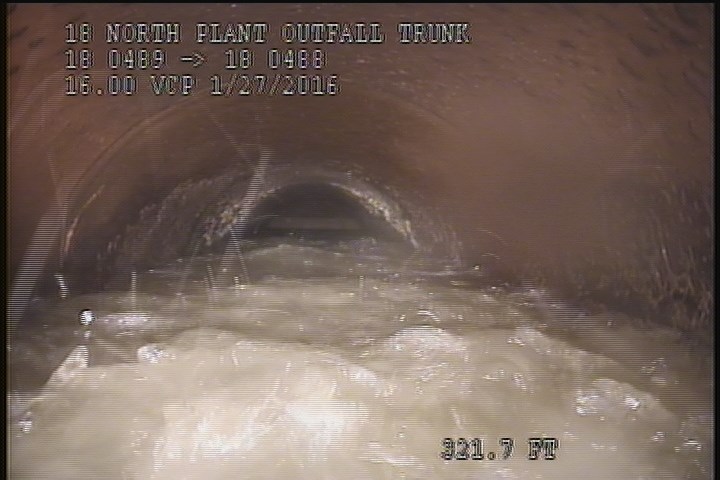

  • Water Level, 60 %of cross sectional area

    321.7 ft. - Water Level, 60 %of cross sectional area

All inspections of P14343Work order 0547024

Observations (39)

DistanceCodeObservation
192.7FLHAIRLINE
228.5TBOPEN
71.7TFActive
28FLSLIGHT
321.7MWL—
263.7FL—
25.5FC—
198.3FL—
4.4FCSLIGHT
0AMH5:10AM
142.1TFActive
224.1FL—
331.3FLSLIGHT 20%
0MWM—
331.3FCSLIGHT 20%
218.9FLHAIRLINE
242.9FLSLIGHT
25.5FLHAIRLINE
80.1FL—
331.3FCHAIRLINE 30%
331.8AMH5:50AM
17.1FCSLIGHT
246.7FL—
331.3FLHAIRLINE 20%
245.6FSHAIRLINE
250.4FS—
40.6FL—
12.6FCHAIRLINE
28FCHAIRLINE
28FLHAIRLINE
0MGOMH CONN OPEN 3:00
2FCSLIGHT
178.3TFOpen
242.9FLHAIRLINE
0MWL—
28FCSLIGHT
66.9FLSLIGHT
331.3MGOMH CONN 12:00 STOPLOG IN PLACE
25.5FCSLIGHT

Properties (4)

custom_field_three
SLIGHT LONG JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-01-27T04:21:19-08:00
