Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 14, 2016, 09:45 AM
Date
01/14/2016
W/O
0541737
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00333
PipeID
P20070
Time
1:45 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6671
Sewer Name
A JOINT OUTFALL A - UNIT 3B
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20160114MDM_JPINT_OUTFALL_A_UNIT_3B
Material
RCP-CTL
Shape
Square
Height
114 in.
Upstream MH
B 0929
Downstream MH
B 0928
Dir. of Survey
Downstream
Length Surveyed
25.6 ft.
Total Length
25.6 ft.
Structural Index
4
Structural Quick
5233
Structural Rating
19
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole B 0929 to B 0928
MH: B 0929MH: B 0928downstream0 ft. MGO - General Observation - MH CONN STOPLOG IN PLACE3:000 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MWL - Water Level, 50 %of cross sectional area10.8 ft. MGO - General Observation - POSSIBLE DISCLORED MAG COAT ON PIPE10.8 ft. MGO - General Observation - MISSING TILES 100% 10: 00 TO 2:00 START10.8 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG10.8 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - AT SOFFIT LONG CIRCUM REBAR15.2 ft. MGP - General Photograph15.2 ft. SRV - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR25.3 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish25.3 ft. MGO - General Observation - MISSING TILES 100% FINISH25.6 ft. AMH - Downstream Manhole, Survey Ends - 3:35AM

Observation photos (6)

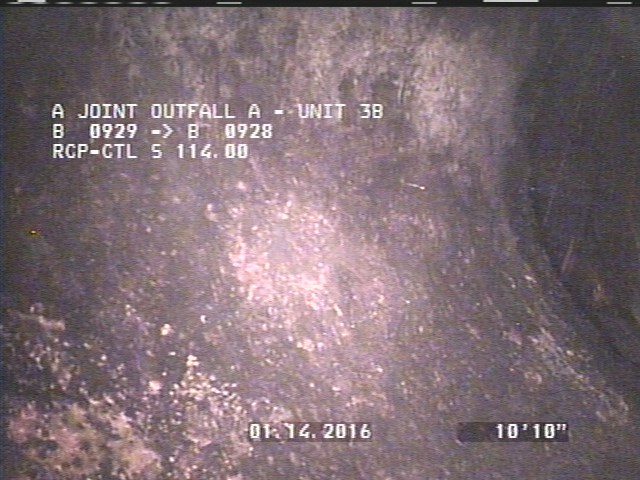

  • General Observation - POSSIBLE DISCLORED MAG COAT ON PIPE

    10.8 ft. - General Observation - POSSIBLE DISCLORED MAG COAT ON PIPE

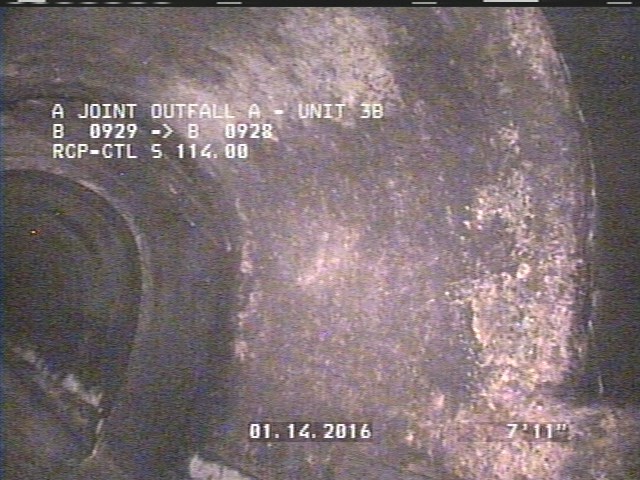

  • General Observation - MISSING TILES 100% 10: 00 TO 2:00 START

    10.8 ft. - General Observation - MISSING TILES 100% 10: 00 TO 2:00 START

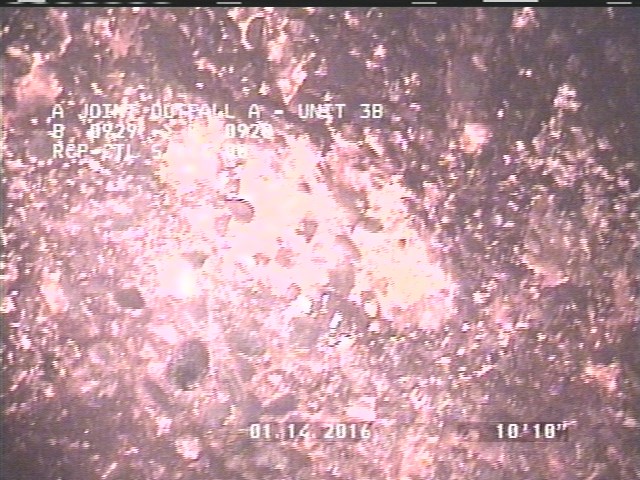

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    10.8 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

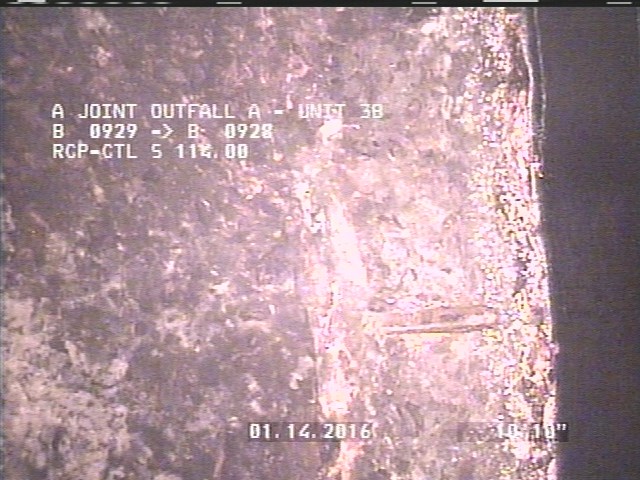

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - AT SOFFIT LONG CIRCUM REBAR

    10.8 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - AT SOFFIT LONG CIRCUM REBAR

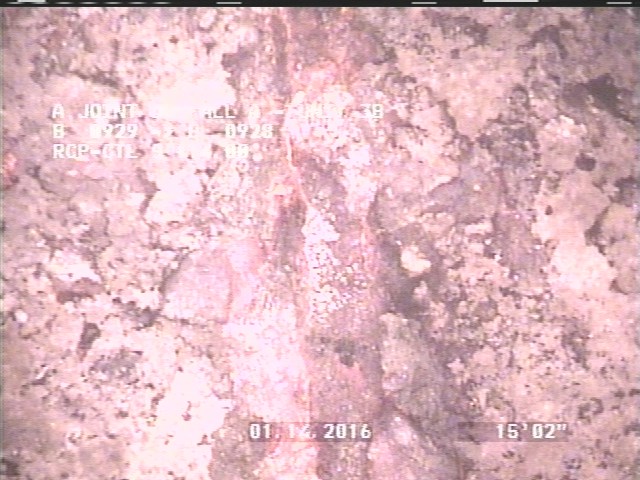

  • General Photograph

    15.2 ft. - General Photograph

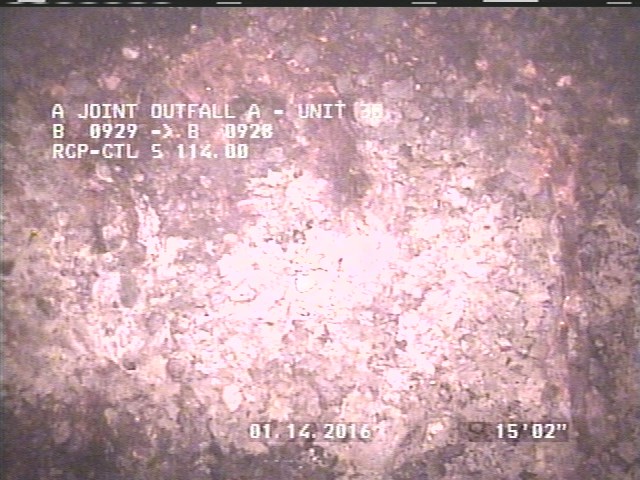

  • Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR

    15.2 ft. - Surface Reinforcement Visible, from 11 to 12 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR

All inspections of P20070Work order 0541737

Observations (13)

DistanceCodeObservation
10.8MGOPOSSIBLE DISCLORED MAG COAT ON PIPE
10.8MGOMISSING TILES 100% 10: 00 TO 2:00 START
25.6AMH3:35AM
25.3SAP—
0MGOMH CONN STOPLOG IN PLACE3:00
15.2MGP—
10.8SAPSEVERE AGG
10.8SRVAT SOFFIT LONG CIRCUM REBAR
15.2SRVPOSSIBLE CIRCUM REBAR
0MWM—
0AMH3:20AM
25.3MGOMISSING TILES 100% FINISH
0MWL—

Properties (4)

custom_field_three
MISSING TILES-SEVERE AGG-CIRCUM REBAR VISIBLE
custom_field_two
2
customer
LACSD
datetime
2016-01-14T01:45:48-08:00
