Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2016, 09:25 AM
Date
01/04/2016
W/O
0546885
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00158
PipeID
P10064
Time
1:25 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6667
Sewer Name
D JOINT OUTFALL D - UNIT 7
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Capital Improvement Program Assesment
Project
20160104MDM_JOINT_OUTFALL_D_UNIY_7
Material
RCP-CTL
Shape
Circular
Height
60 in.
Upstream MH
D 0126
Downstream MH
D 0125
Dir. of Survey
Downstream
Length Surveyed
61.5 ft.
Total Length
61.5 ft.
Structural Index
5
Structural Quick
5A4A
Structural Rating
108
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
108
Pipe schematic from manhole D 0126 to D 0125
MH: D 0126MH: D 0125downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - LONG & CIRCUM REBAR2 ft. MGO - General Observation - MISSING TILES 100% START2 ft. MGO - General Observation - MAG COAT 50% 8:00 TO 4:00 START8 ft. MGO - General Observation - MAG COAT 50%15.1 ft. MGO - General Observation - MISSING TILES 30%25.5 ft. MGO - General Observation - MAG COAT 90% START33.3 ft. MGO - General Observation - MAG COAT 30% START33.3 ft. MGO - General Observation - MISSING TILES 30%55.2 ft. MGO - General Observation - MISSING TILES 100%61.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR61.1 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish61.1 ft. MGO - General Observation - MH CONN OPEN STOPLOG IN PLACE61.1 ft. MGO - General Observation - MAG COAT 30% FINISH61.5 ft. AMH - Downstream Manhole, Survey Ends - 2:15AM

Observation photos (5)

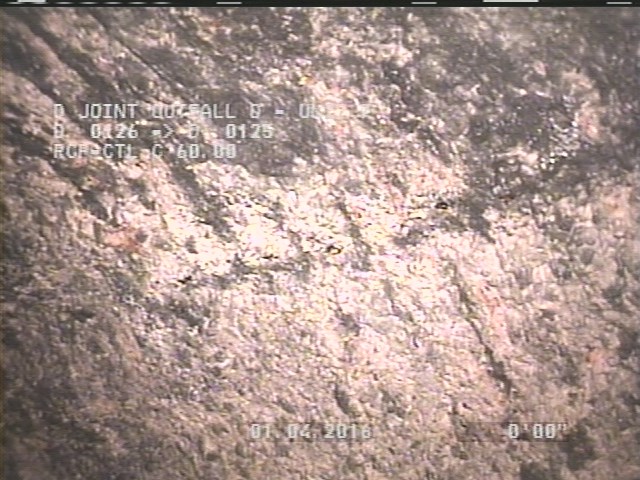

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - LONG & CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES - LONG & CIRCUM REBAR

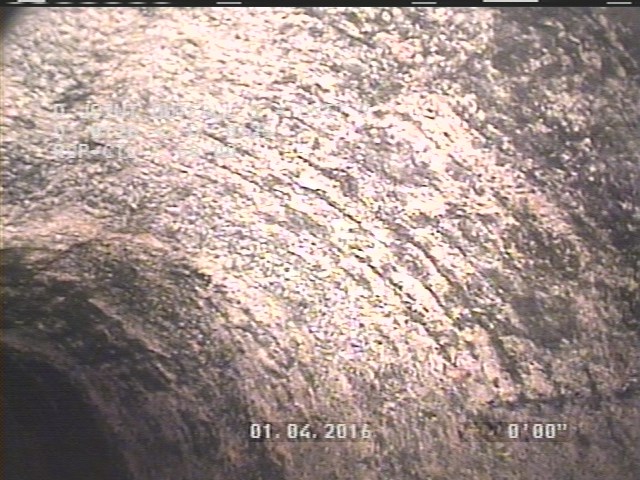

  • General Observation - MAG COAT 50% 8:00 TO 4:00 START

    2 ft. - General Observation - MAG COAT 50% 8:00 TO 4:00 START

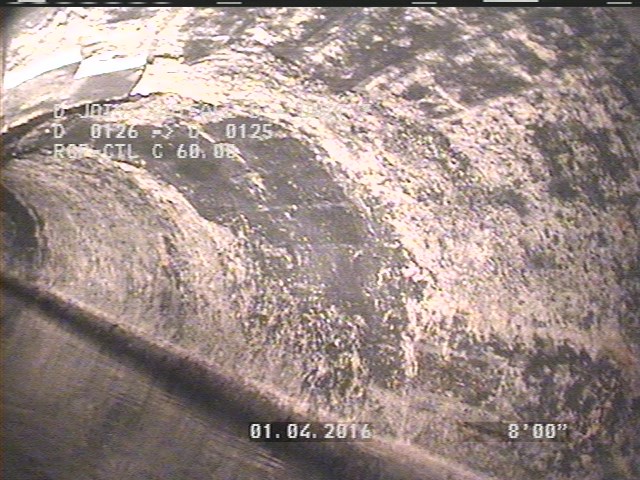

  • General Observation - MAG COAT 50%

    8 ft. - General Observation - MAG COAT 50%

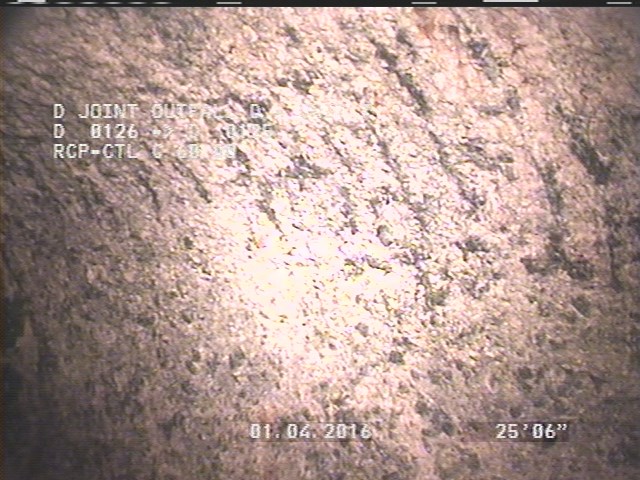

  • General Observation - MAG COAT 90% START

    25.5 ft. - General Observation - MAG COAT 90% START

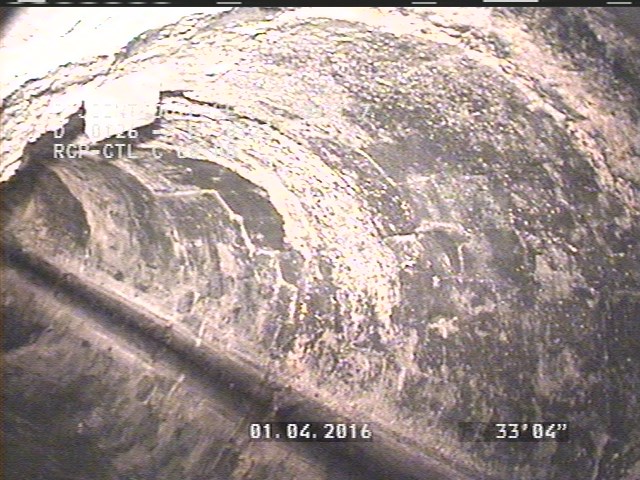

  • General Observation - MISSING TILES 30%

    33.3 ft. - General Observation - MISSING TILES 30%

All inspections of P10064Work order 0546885

Observations (18)

DistanceCodeObservation
2SAMSEVERE AGG UNDER MAG COAT
0MWL—
15.1MGOMISSING TILES 30%
0MWM—
33.3MGOMAG COAT 30% START
2SRVLONG & CIRCUM REBAR
61.5AMH2:15AM
33.3MGOMISSING TILES 30%
61.1SRVLONG & CIRCUM REBAR
2MGOMISSING TILES 100% START
61.1SAM—
2MGOMAG COAT 50% 8:00 TO 4:00 START
61.1MGOMH CONN OPEN STOPLOG IN PLACE
55.2MGOMISSING TILES 100%
0AMH1:55AM
8MGOMAG COAT 50%
61.1MGOMAG COAT 30% FINISH
25.5MGOMAG COAT 90% START

Properties (4)

custom_field_three
VISIBLE REBAR
custom_field_two
2
customer
LACSD
datetime
2016-01-04T01:25:46-08:00
