Wastewater/Activity/PacpInspection/1.0Jan 4, 2016, 06:17 PM
01 0357_01 0356_142016_105208.mp4
- Date
- 01/04/2016
- W/O
- 0547106
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00215
- PipeID
- P00831
- Time
- 10:17 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7031
- Sewer Name
- 01 NADEAU TRUNK, SECTS 2&1
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20160104AM_NADEAU_TRUNK_SECTS_2_1
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0357
- Downstream MH
- 01 0356
- Dir. of Survey
- Downstream
- Length Surveyed
- 336.5 ft.
- Total Length
- 336.5 ft.
- Structural Index
- 3
- Structural Quick
- 4139
- Structural Rating
- 45
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 49
Observation photos (5)

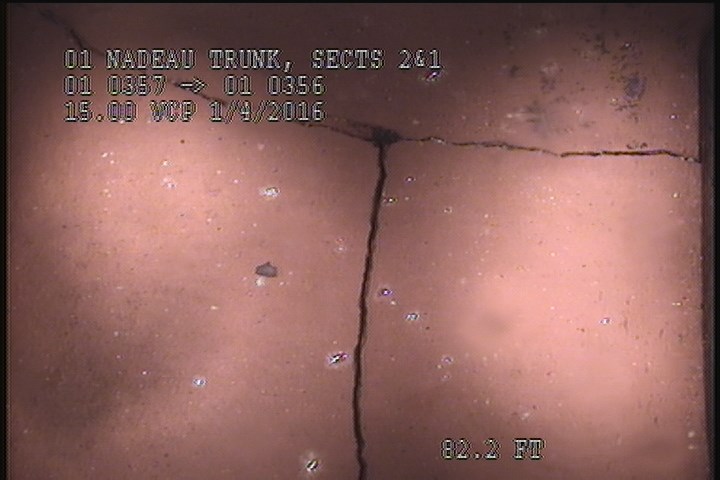

82.2 ft. - Fracture Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

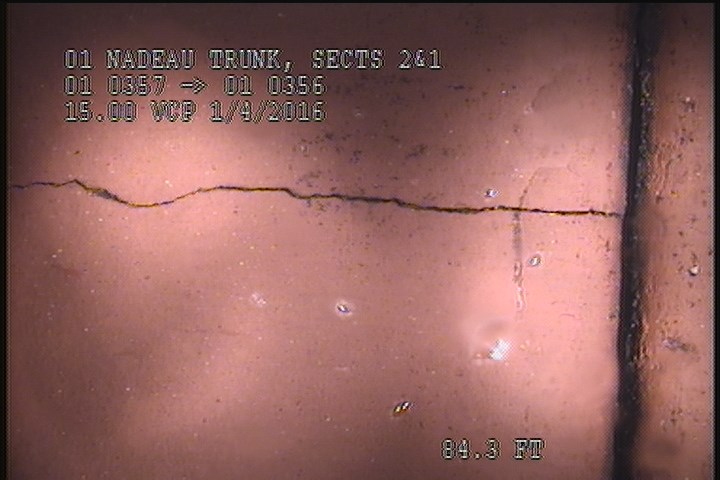

84.3 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

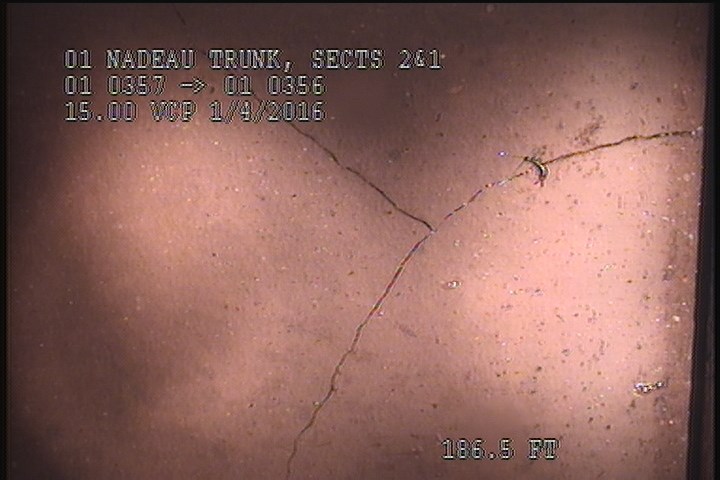

186.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

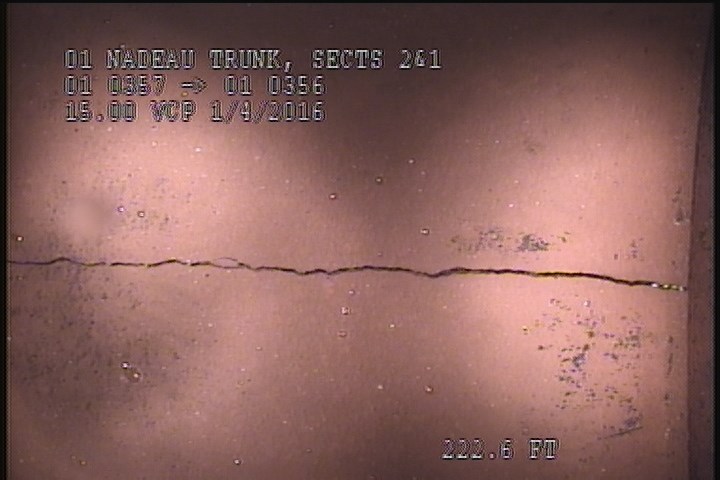

222.6 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

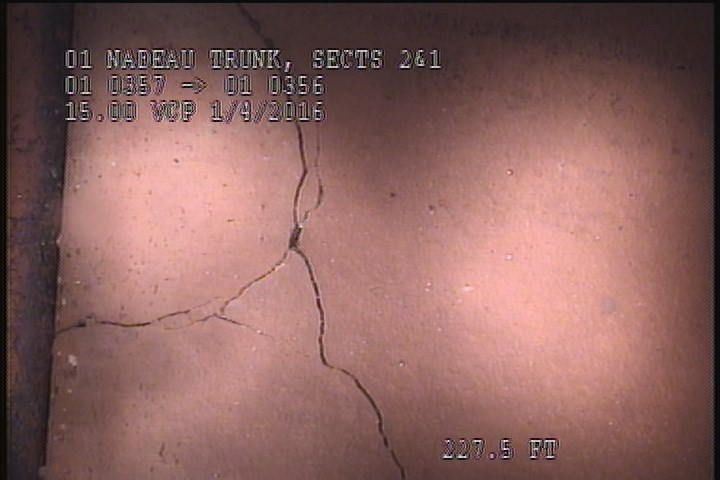

227.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (27)
| Distance | Code | Observation |
|---|---|---|
| 176.3 | CL | — |
| 309 | CM | — |
| 273.4 | CL | — |
| 160.9 | CL | — |
| 253.1 | CM | — |
| 156 | CL | — |
| 0 | AMH | 10:50 AM |
| 336.5 | AMH | 11:20 AM |
| 334.9 | MGO | ROACHES INSIDE THE MH. |
| 263.5 | CS | — |
| 84.3 | CL | — |
| 0 | MWL | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 334.3 | MGO | SLIGHT GREASE/DEBRIS THROUGHOUT THE REACH |
| 293.9 | CM | — |
| 222.6 | CM | — |
| 89.3 | CM | — |
| 334.9 | MGO | ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK |
| 140.2 | CM | — |
| 238 | CL | — |
| 217 | MGO | CHIPPING @ 10 O'CLOCK |
| 82.2 | FM | — |
| 227.5 | CM | — |
| 186.5 | CM | — |
| 0 | MWM | — |
| 334.3 | MGO | MULTIPLE CRACKS THROUGHOUT THE REACH |
| 207 | CM | — |
Properties (4)
- custom_field_three
- MULTIPLE CRACKS THROUGHOUT THE REACH
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-04T10:17:02-08:00
