Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2016, 05:42 PM

  • 01 0358_01 0357_142016_095435.mp4

Date
01/04/2016
W/O
0547106
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00215
PipeID
P00832
Time
9:42 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7031
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
03
Purpose
Routine Assessment
Project
20160104AM_NADEAU_TRUNK_SECTS_2_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0358
Downstream MH
01 0357
Dir. of Survey
Downstream
Length Surveyed
313.4 ft.
Total Length
313.4 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
13
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 01 0358 to 01 0357
MH: 01 0358MH: 01 0357downstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:53 AM0 ft. MWL - Water Level, 35 %of cross sectional area88.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES200.6 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES226 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES307.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES312.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH312.2 ft. MGO - General Observation - ROACHES INSIDE THE MH.313.4 ft. AMH - Downstream Manhole, Survey Ends - 10:13 AM

Observation photos (2)

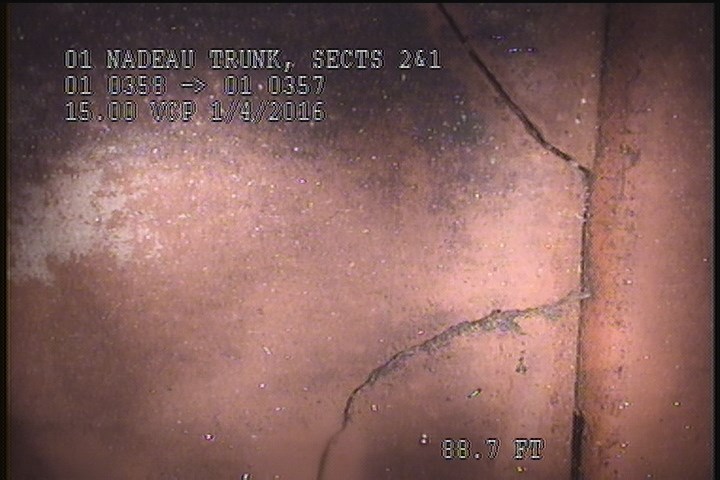

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    88.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

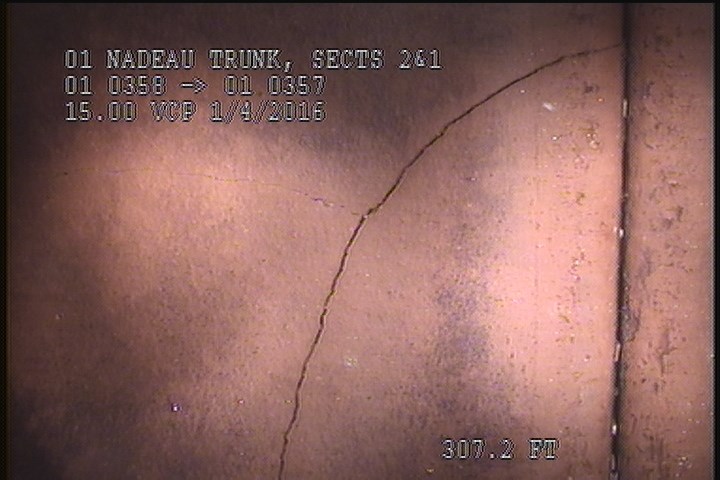

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    307.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00832Work order 0547106

Observations (10)

DistanceCodeObservation
200.6CM—
312.2MGOSLIGHT GREASE THROUGHOUT THE REACH
307.2CM—
312.2MGOROACHES INSIDE THE MH.
0MWM—
313.4AMH10:13 AM
0AMH9:53 AM
0MWL—
88.7FM—
226CM—

Properties (4)

custom_field_three
MULTIPLE CRACKS
custom_field_two
3
customer
LACSD
datetime
2016-01-04T09:42:31-08:00
