Wastewater/Activity/PacpInspection/1.0Dec 22, 2015, 07:07 PM
D 0095_D 0094_12222015_111728.mp4
- Date
- 12/22/2015
- W/O
- 0531073
- Weather
- Damp
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00156
- PipeID
- P09998
- Time
- 11:07 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7024
- Sewer Name
- D JOINT OUTFALL D - UNIT 6
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- 20151222AM_JOINT_OUTFALL_D_UNIT_6
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- D 0094
- Downstream MH
- D 0095
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

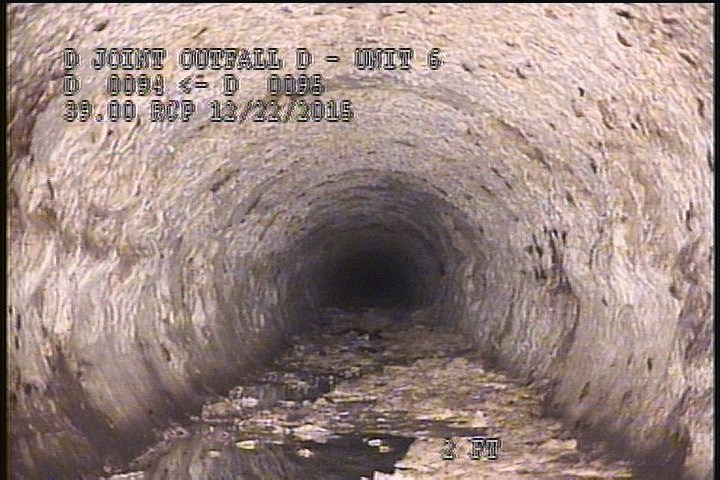

0 ft. - Water Level, 15 %of cross sectional area - STAGNANT WATER

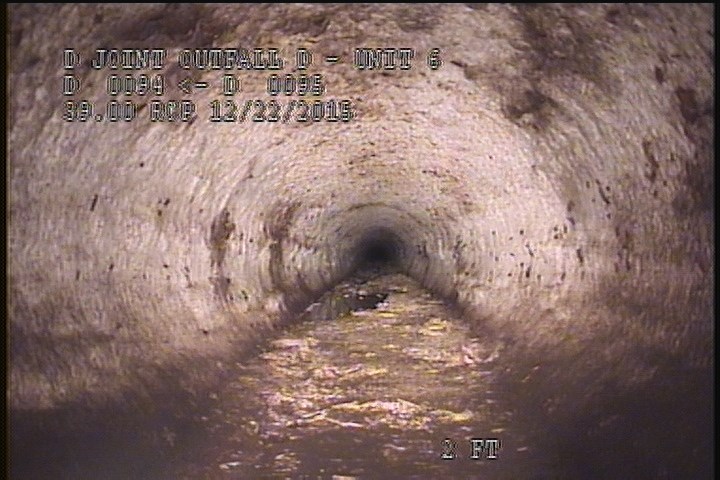

0 ft. - Downstream Manhole, Survey Begins - 11:14 AM

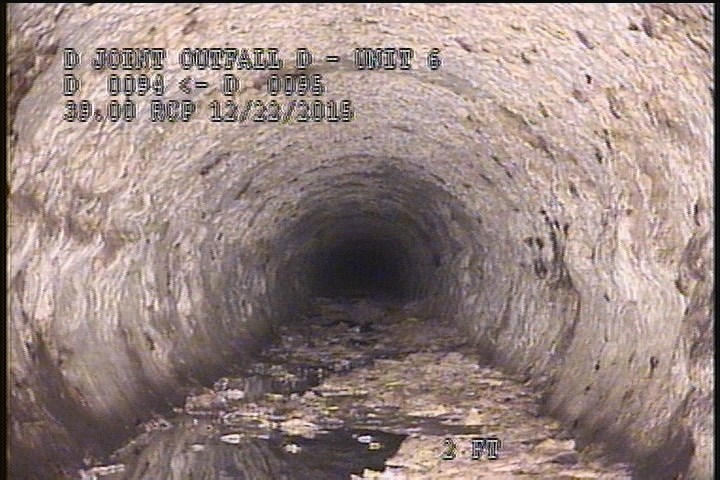

2.1 ft. - Survey Abandoned - STAGNANT WATER
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | STAGNANT WATER |
| 0 | MWL | STAGNANT WATER |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK |
| 2 | MGO | 85% MAG COAT FROM 08 TO 04 O'CLOCK |
| 0 | AMH | 11:14 AM |
Properties (5)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. & ZOOM IN U/S
- custom_field_three
- STAGNANT WATER
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-12-22T11:07:54-08:00
