Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2015, 04:44 PM
Date
12/16/2015
W/O
0536440
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00029
PipeID
P11293
Time
8:44 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6664
Sewer Name
E JOINT OUTFALL E - UNIT 3
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
20151216AM_JOINT_OUTFALL_E_UNIT_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
E 0063
Downstream MH
E 0062
Dir. of Survey
Downstream
Length Surveyed
380.2 ft.
Total Length
380.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole E 0063 to E 0062
MH: E 0063MH: E 0062downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 9:00 AM0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. MGO - General Observation - BULKHEAD INSIDE THE MH. @ 05 O'CLOCK0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 06 O'CLOCK2 ft. MGO - General Observation - 85% MAG COAT FROM 09 TO 03 O'CLOCK, START120.6 ft. DAZ - Deposits Attached Other, 15 % - 20% of cross sectional area, from 06 to 07 o'clock, , within 8 inches of joint: NO - ROCKS AND RAGS379.3 ft. MGO - General Observation - 85% MAG COAT FROM 09 TO 03 O'CLOCK, FINISH379.3 ft. MGO - General Observation - DEBRIS THROUGHOUT THE REACH380.2 ft. AMH - Downstream Manhole, Survey Ends - 11:06 AM

Observation photos (3)

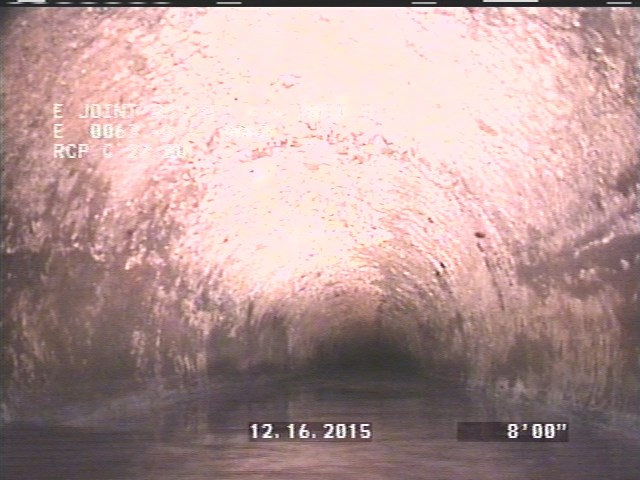

  • Upstream Manhole, Survey Begins - 9:00 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:00 AM

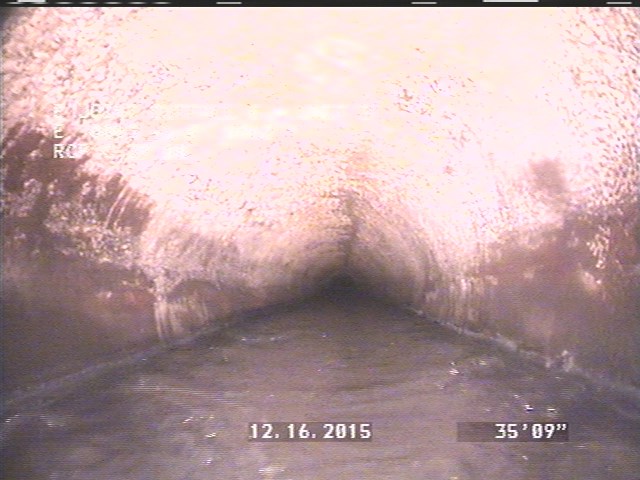

  • Water Level, 35 %of cross sectional area

    0 ft. - Water Level, 35 %of cross sectional area

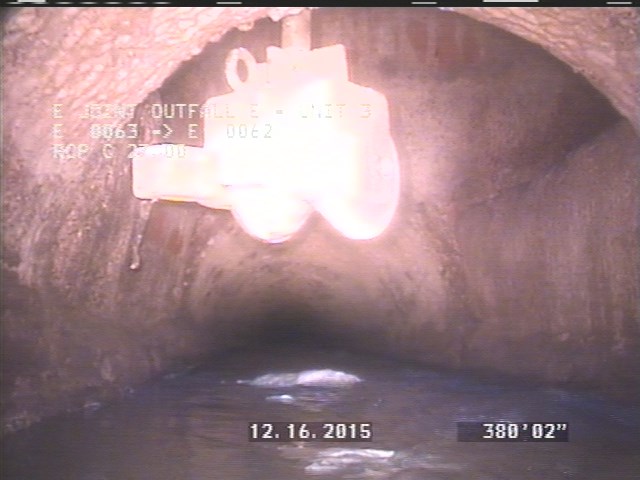

  • Downstream Manhole, Survey Ends - 11:06 AM

    380.2 ft. - Downstream Manhole, Survey Ends - 11:06 AM

All inspections of P11293Work order 0536440

Observations (11)

DistanceCodeObservation
120.6DAZROCKS AND RAGS
379.3MGO85% MAG COAT FROM 09 TO 03 O'CLOCK, FINISH
379.3MGODEBRIS THROUGHOUT THE REACH
0MGOROACHES INSIDE THE MH.
0AMH9:00 AM
0MWL—
2MGO85% MAG COAT FROM 09 TO 03 O'CLOCK, START
0MWM—
380.2AMH11:06 AM
0MGOBULKHEAD INSIDE THE MH. @ 05 O'CLOCK
0MGOACTIVE CONN. INSIDE THE MH. @ 06 O'CLOCK

Properties (4)

custom_field_three
85% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2015-12-16T08:44:51-08:00
