Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2015, 07:31 PM

  • Section#6_02 0176_02 0175__SI_Date__SI_Preset.mp4

Date
12/01/2015
W/O
0536410
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00251
PipeID
P02482
Time
11:31 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7005
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
32
Purpose
Routine Assessment
Project
20151201AM_DOWNEY_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0175
Downstream MH
02 0176
Dir. of Survey
Upstream
Length Surveyed
763.9 ft.
Total Length
763.9 ft.
Structural Index
2
Structural Quick
3826
Structural Rating
37
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
43
Pipe schematic from manhole 02 0175 to 02 0176
MH: 02 0175MH: 02 0176upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:31 PM0.6 ft. MGO - General Observation - CORRODED STOPLOG0.6 ft. MGO - General Observation - MULTIPLE CRACKS THROUGHOUT THE REACH0.6 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH3.4 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES36.7 ft. OBM - Obstacles Pipe Material, 5 %of cross sectional area, from 05 to 07 o'clock40.4 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES50.8 ft. OBM - Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock58.5 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES72.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"75.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"131.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"134 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"148.1 ft. OBM - Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock184 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"186.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"228.6 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES233.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"236.6 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"282.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"286.5 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"324.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES332.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"334.2 ft. CM - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES336.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"352.7 ft. CM - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES355.8 ft. CM - Crack Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES355.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES382.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"385.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"420.7 ft. CC - Crack Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES432 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"435.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"481.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"484.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"510.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES533.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"537.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"586.6 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"589.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"636 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"637.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES639.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"675 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES686.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"688.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"693.4 ft. CM - Crack Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES737.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES763.9 ft. MWL - Water Level, 5 %of cross sectional area763.9 ft. AMH - Downstream Manhole, Survey Begins - 12:32 PM763.9 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (5)

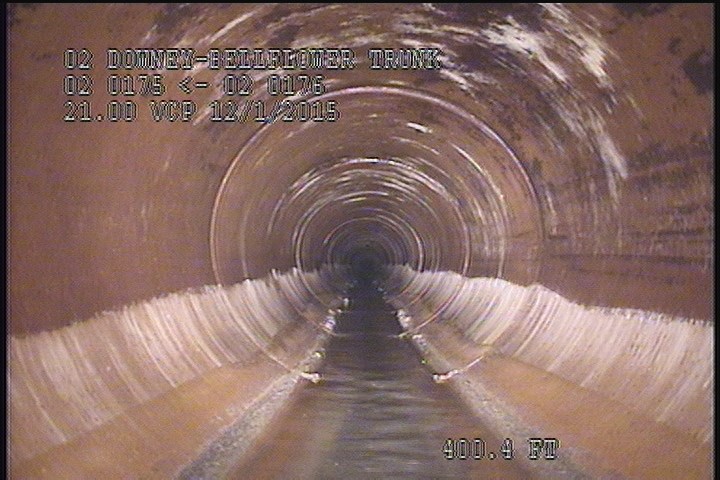

  • Downstream Manhole, Survey Begins - 12:32 PM

    0 ft. - Downstream Manhole, Survey Begins - 12:32 PM

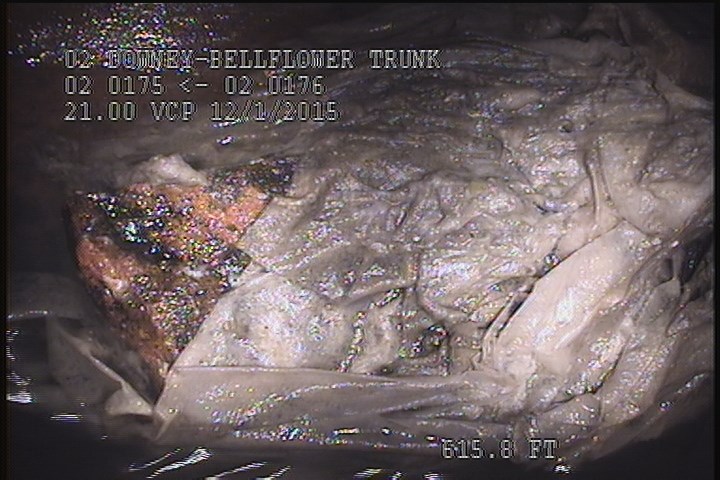

  • Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock

    615.8 ft. - Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock

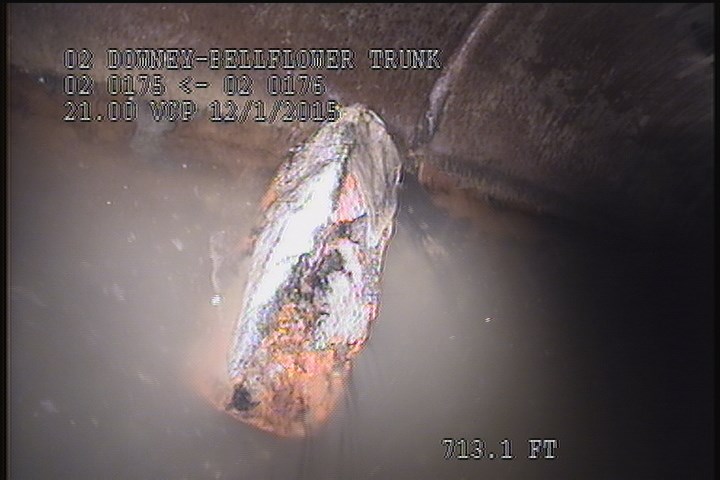

  • Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock

    713.1 ft. - Obstacles Pipe Material, 5 %of cross sectional area, from 06 to 07 o'clock

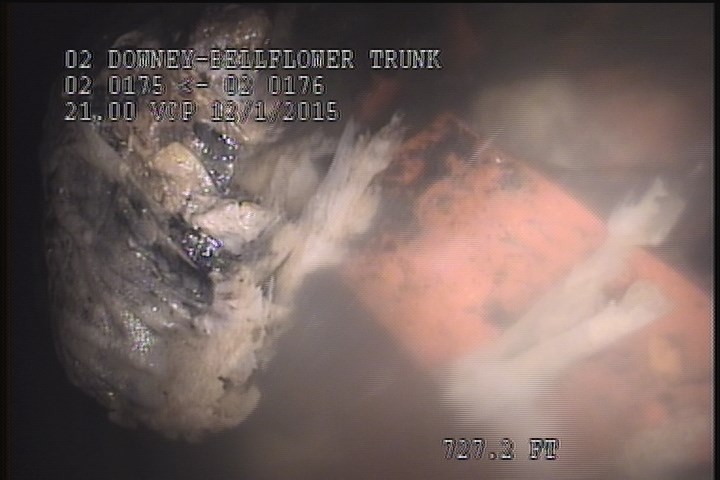

  • Obstacles Pipe Material, 5 %of cross sectional area, from 05 to 07 o'clock

    727.2 ft. - Obstacles Pipe Material, 5 %of cross sectional area, from 05 to 07 o'clock

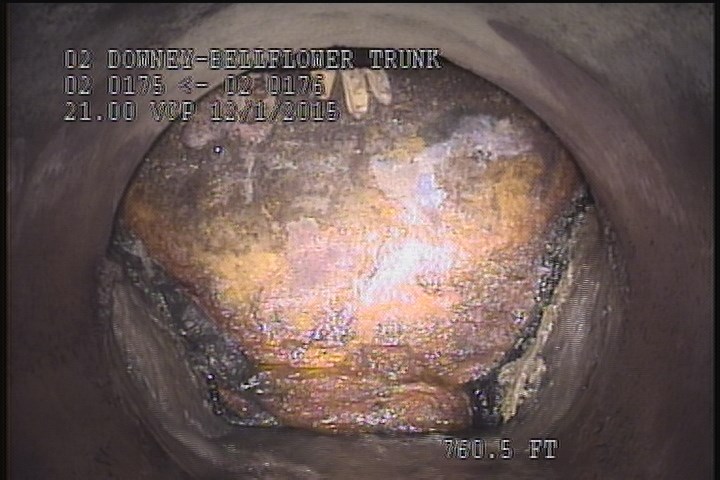

  • General Observation - CORRODED STOPLOG

    763.3 ft. - General Observation - CORRODED STOPLOG

All inspections of P02482Work order 0536410

Observations (51)

DistanceCodeObservation
763.3MGOCORRODED STOPLOG
124.2TFC—
381.5TFC—
343.2CC—
427.8TFC—
727.2OBM—
723.5CM—
408.1CM—
477.4TFC—
0MWL—
77.7TFC—
705.4CM—
226.7TFC—
577TFC—
88.9CL—
579.9TFC—
328.7TFC—
378.2TFC—
629.9TFC—
429.7CM—
70.5CM—
688.8TFC—
253.5CL—
763.3MGOMULTIPLE CRACKS THROUGHOUT THE REACH
230.1TFC—
126.6CL—
282.5TFC—
127.9TFC—
174.6TFC—
279.5TFC—
26.6CL—
763.9AMH1:31 PM
632.6TFC—
760.5CM—
481.2TFC—
75.8TFC—
763.3MGOSLIGHT GREASE THROUGHOUT THE REACH
439CL—
408.1CL—
530.2TFC—
177.3TFC—
0AMH12:32 PM
691.4TFC—
535.3CM—
0MWM—
713.1OBM—
331.9TFC—
431.4TFC—
411.2CM—
615.8OBM—
527.3TFC—

Properties (4)

custom_field_three
MULTIPLE CRACKS THROUGHOUT
custom_field_two
3
customer
LACSD
datetime
2015-12-01T11:31:58-08:00
